Firebird® "Banjo" Tuners (Vintage Diecast Series) 6-In-Line - Fits Gibson®

Individual or 6-In-Line Kluson Firebird® "banjo" tuners for electric guitar. Vintage Diecast Series. Includes mounting hardware. Fits Gibson® Firebird® V.

Kluson® reissued Firebird® "banjo" tuners for Gibson® Firebird®. Staying true to the design in virtually every aspect. The exact mounting screw pattern and housing size. Because these tuning machines have a larger string post they do require the original larger peg hole which is very similar in size to what is used for modern diecast tuning machines.

• Button Shaft= 5/32 in. (3.97mm) w/ Opposing Flat Sides
• Button Screw= 4-48 N.F. Tap
• String Post Diameter= 5/16"
• Gear Ratio = 12:1 Planetary
• Wind Ratio Equivalent= 14.6:1
• Mounting Screws= #4 X 1/2" Phillips Raised Head Countersink Screw
• Bushing= 13/32" (10mm) Outer Diameter X 5/16'' Interior Diameter

The engraving on the bottom plates depict treble or bass side and are only visible when tuning machine is not installed.

Available in:

• Gold - Bass Side (Individual) [SKU:KVDF-1B-G]
• Nickel - Bass Side (Individual) [SKU:KVDF-1B-N]
• Chrome - Treble Side (Individual) [SKU:KVDF-1T-C]
• Gold - Treble Side (Individual) [SKU:KVDF-1T-G]
• Nickel - Treble Side (Individual) [SKU:KVDF-1T-N]

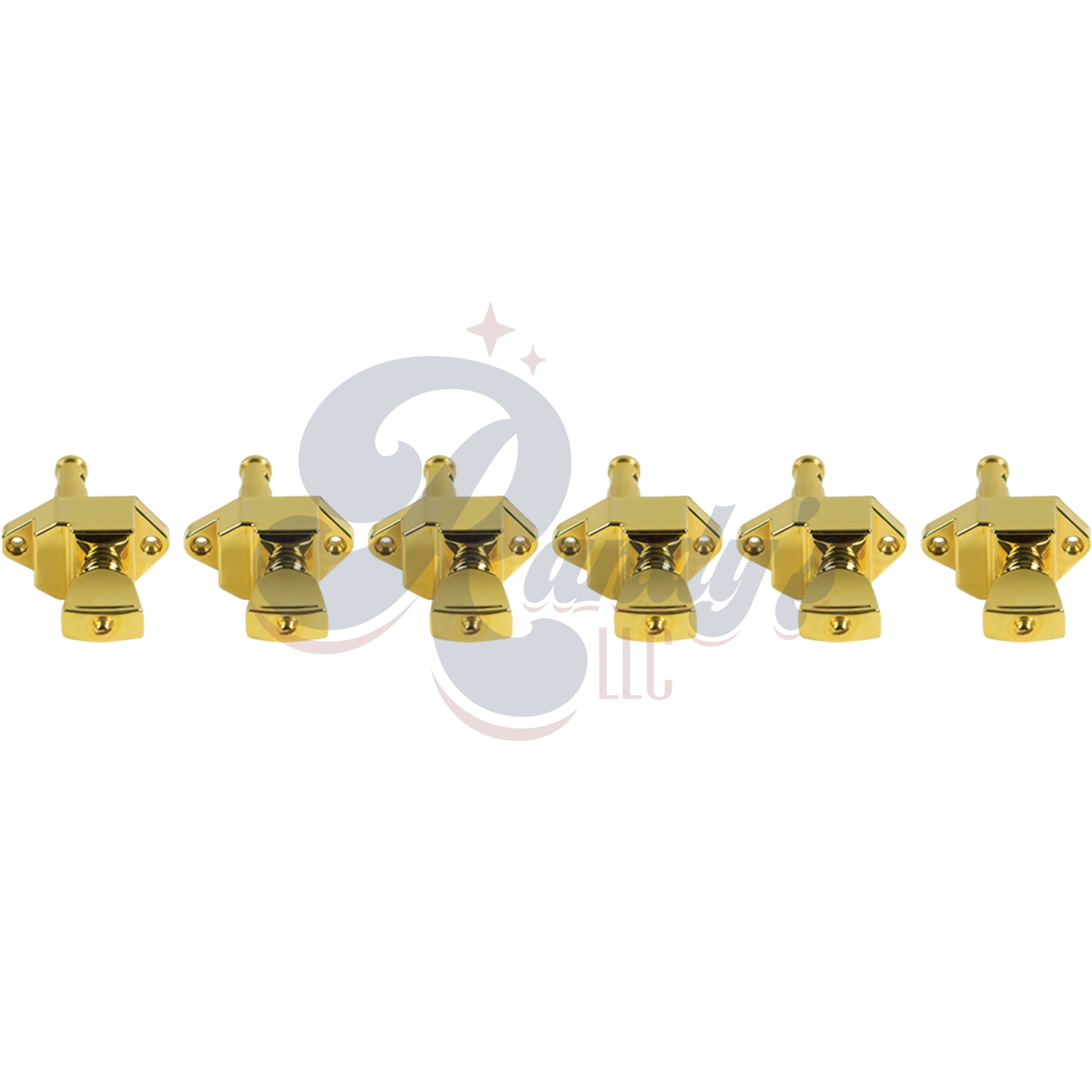

• Gold - 6-In-Line [SKU:KVDF-6-G]

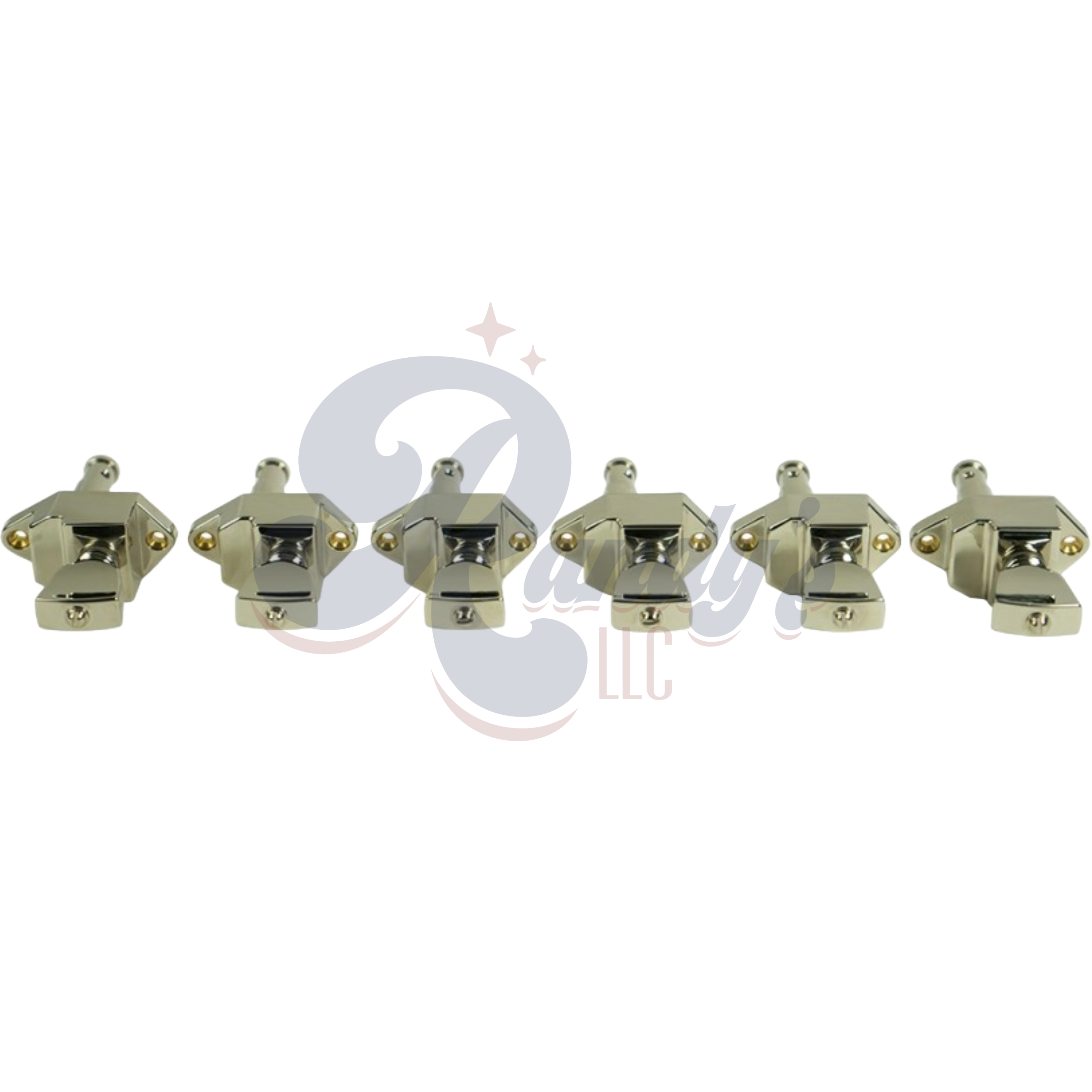

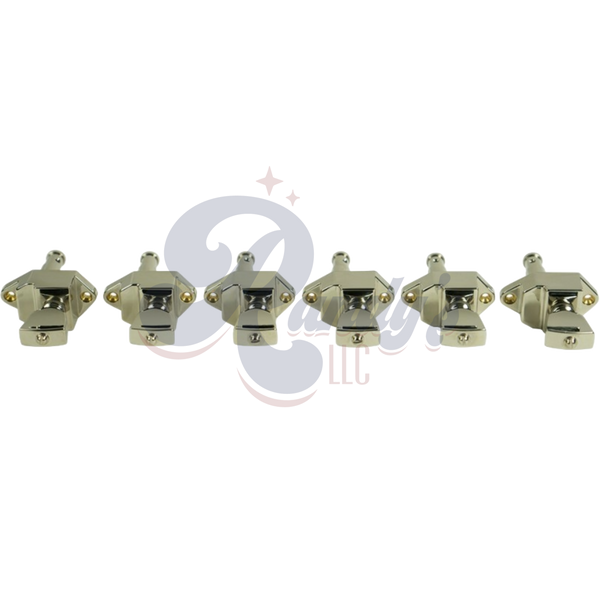

• Nickel - 6-In-Line [SKU:KVDF-6-N]
