Switchcraft ¼" Input Jack #L11 (Mono) Long - Fits Gibson®

The longer bushing length is suitable for guitars with thicker bodies.

Individual Switchcraft ¼" long mono input jack with long bushing for bass and electric guitar. Includes mounting hardware. Made in the USA. Fits Gibson®. Available in:

• Threads: SAE ⅜"-32
• Bushing Length: .375"
• RoHS Compliant

Available in:

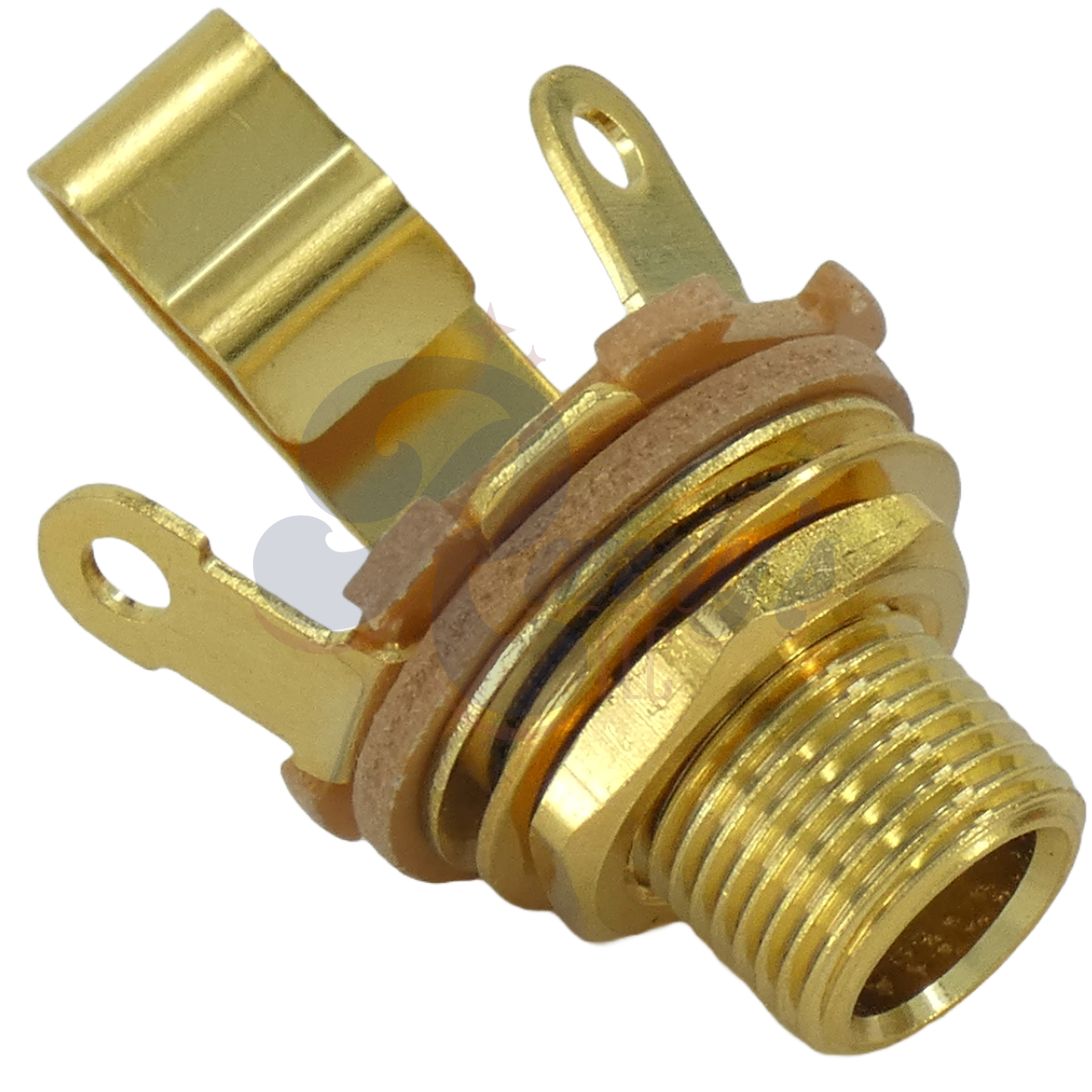

• Gold WDE12LSG

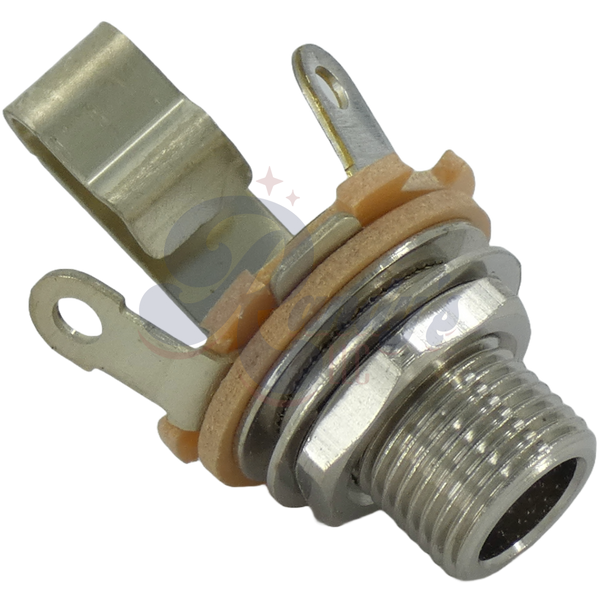

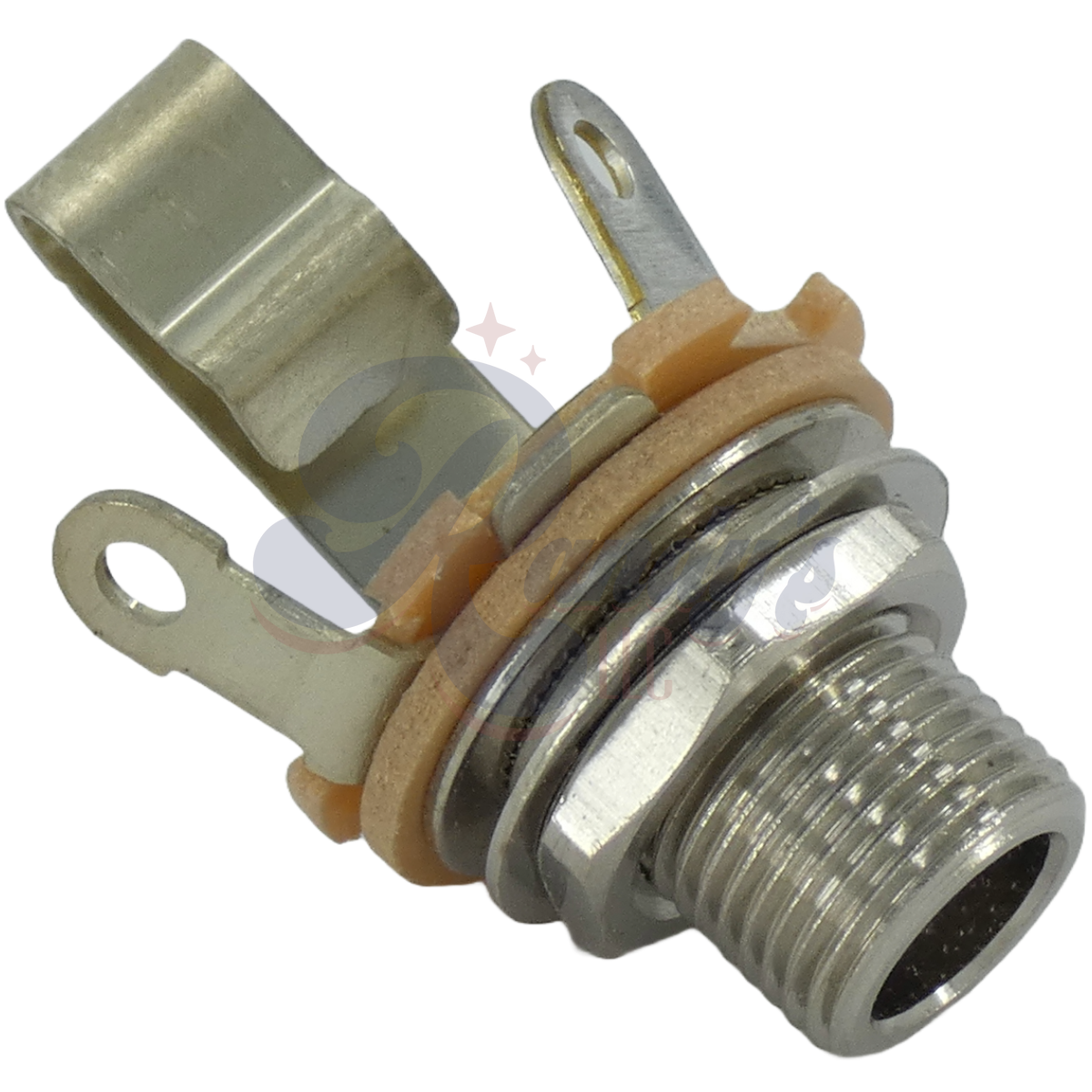

• Nickel WDE12LSN

Configuration

• Number of Conductors: 2
• Product Line: Littel Jacks
• Mounting Type: Panel
• Mounting Feature: Extended Bushing
• Termination Style: Solder
• Contact Plating: Nickel
• Locking: Locking
• Sealed: Not Sealed
• Packaging Type: Bulk
• Standard Connector Type: 1/4" Phone Jacks & Plugs
• Shunt: Shunted
• Jack-Plug Type: Jack
• Special Feature: Open Frame

Electrical

• Contact Resistance: 0.03 Ohms
• Dielectric Withstanding Voltage: 500 Volts
• Insulation Resistance: 10000 MOhms
• Voltage Rating: 25 Volts
• Current Rating: 1 Amps
• Circuit-Schematic: Tip Shunt

Mechanical

• Life Cycle: 10000 Cycles
• Operating Force: 7 lbs
• Coupling Locking Style: Threaded
• Panel Thickness: 0.25 in

Environmental

• Temperature Range: -55C to +85C
• Shielding: Unshielded
• Humidity Rating: MIL-STD-202 Method 106
• Moisture Resistance: MIL-STD-202 Method 106
• Salt Spray: MIL-STD-202 Method 101
• Minimum Temperature: -55 C
• Maxiumum Temperature: 85 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft

Material

• Body Material: Copper Alloy
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Insert Material Type: Rigid Plastic Insulating Spacers
• Terminal Material: Copper Alloy
• Spring Material: Copper Alloy
• Sleeve Material: Copper Alloy
