Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®
Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®
Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®
Click image to open expanded view
Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®
Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®
Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®

Switchcraft ¼" Input Jack - Thick Panel (Stereo) - Fits Gibson®

Price
$18.98
Only 1 left in stock!
Randy's LLC
Color:Nickel

Why Buy From ECG Music?

  • ✓ Real guitar shop — not a warehouse
  • ✓ Carefully selected gear from a trusted dealer
  • ✓ Hand-inspected before shipping (when fulfilled by our shop)
  • ✓ Ships from our shop or directly from trusted manufacturers
  • ✓ Questions before you buy? info@ecgmusic.com

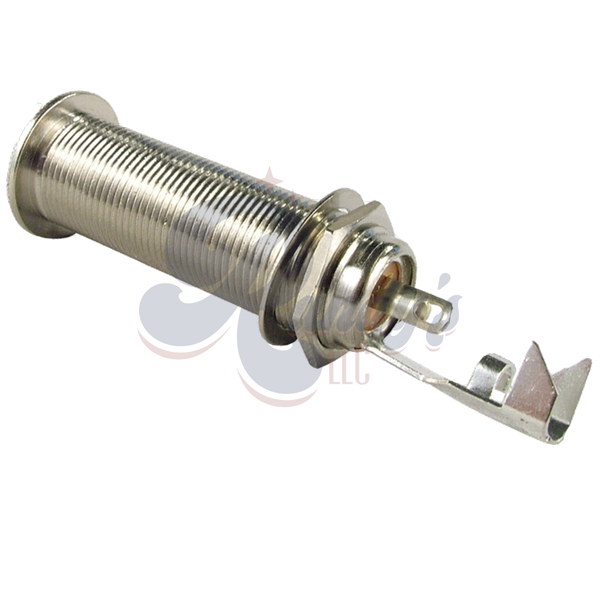

Individual Switchcraft ¼" stereo thick panel input jack for acoustic guitar. Includes mounting washer, nut and cable clamp. Made in the USA. Fits Gibson®. Available in:



  • Nickel 152B



Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Tin
  • Color: Nickel
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: ¼" Phone Jacks & Plugs
  • Jack-Plug Type: Jack
  • Special Feature: Thick Panel "End Pin" Jack


Electrical

  • Current Rating: 1 Amps
  • Circuit-Schematic: Double Open


Mechanical

  • Panel Thickness: 1.25 in


Environmental

  • Temperature Range: -55C to +85C
  • Shielding: Unshielded
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C


Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft



Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Insert Material Type: Rigid Plastic Insulating Spacers
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
  • Sleeve Material: Steel
Specs
What’s included
Warranty

New items include the applicable manufacturer warranty. Extended protection options may be available at checkout when eligible.
