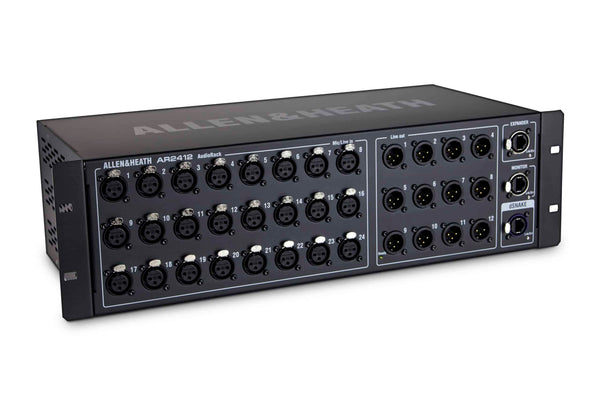

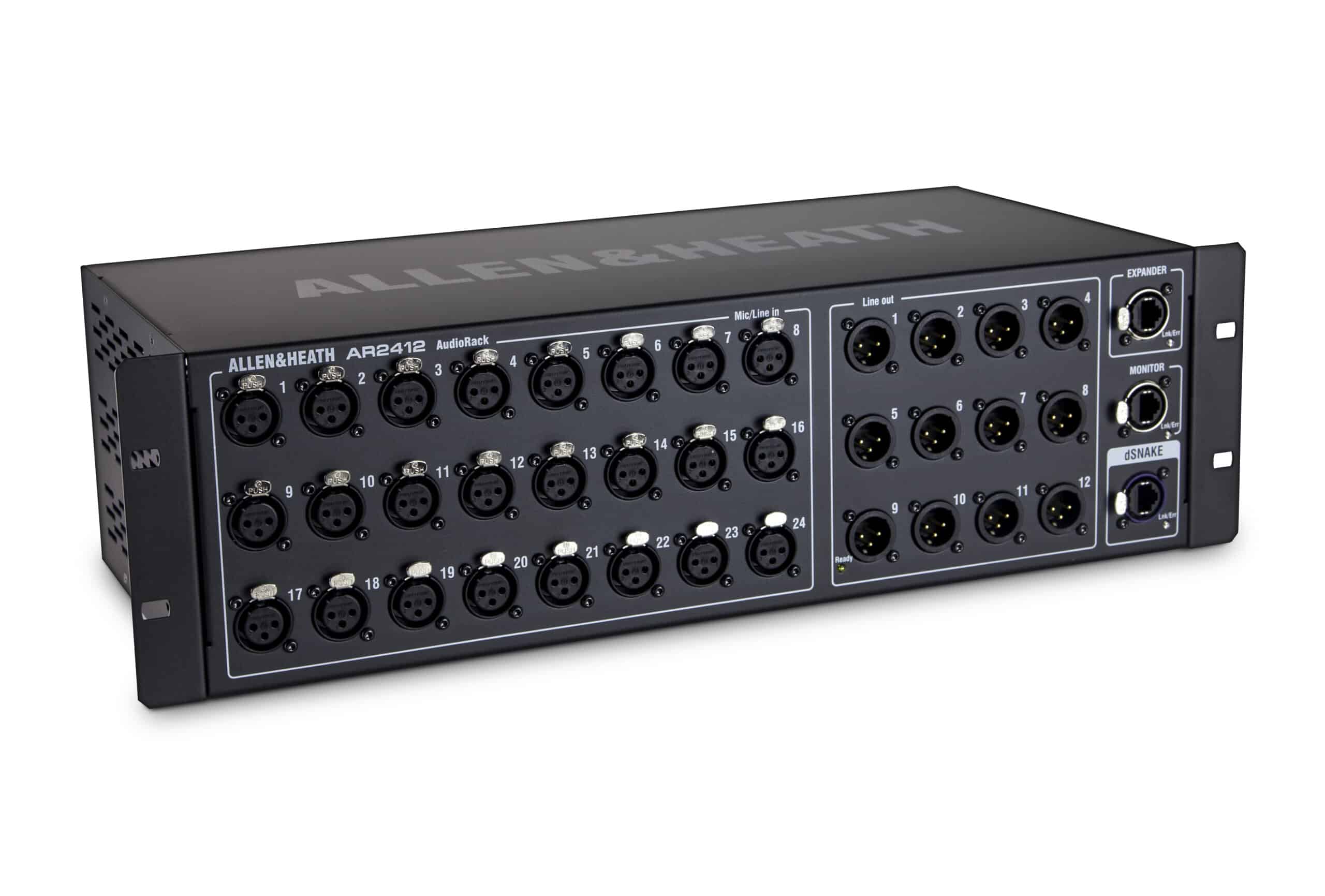

Allen & Heath AR2412 AudioRack

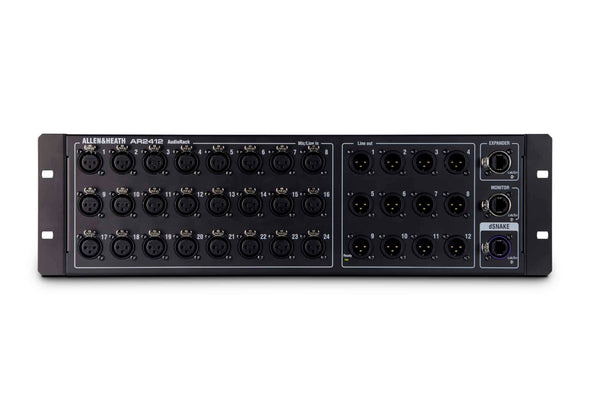

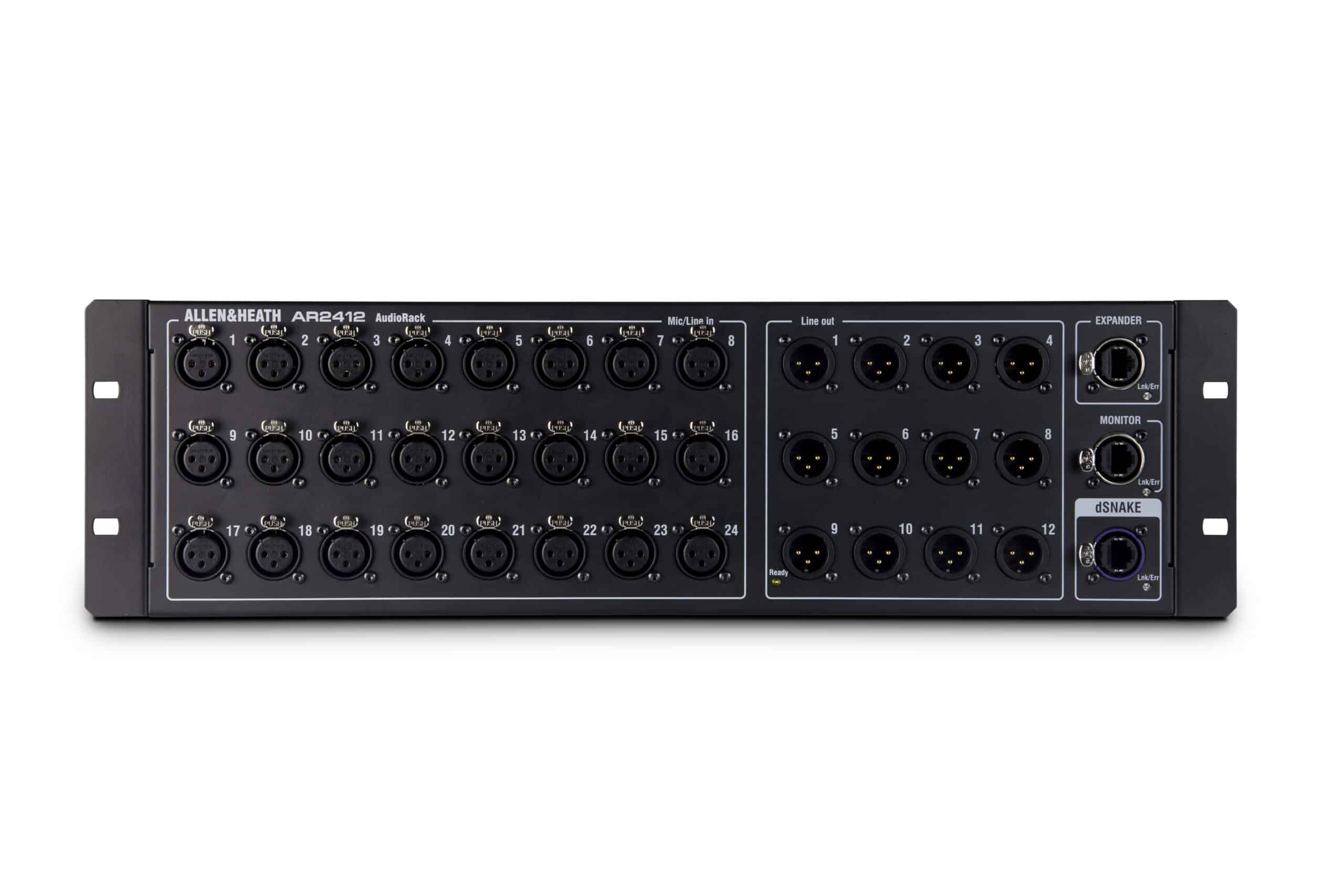

Allen & Heath AR2412 front panel

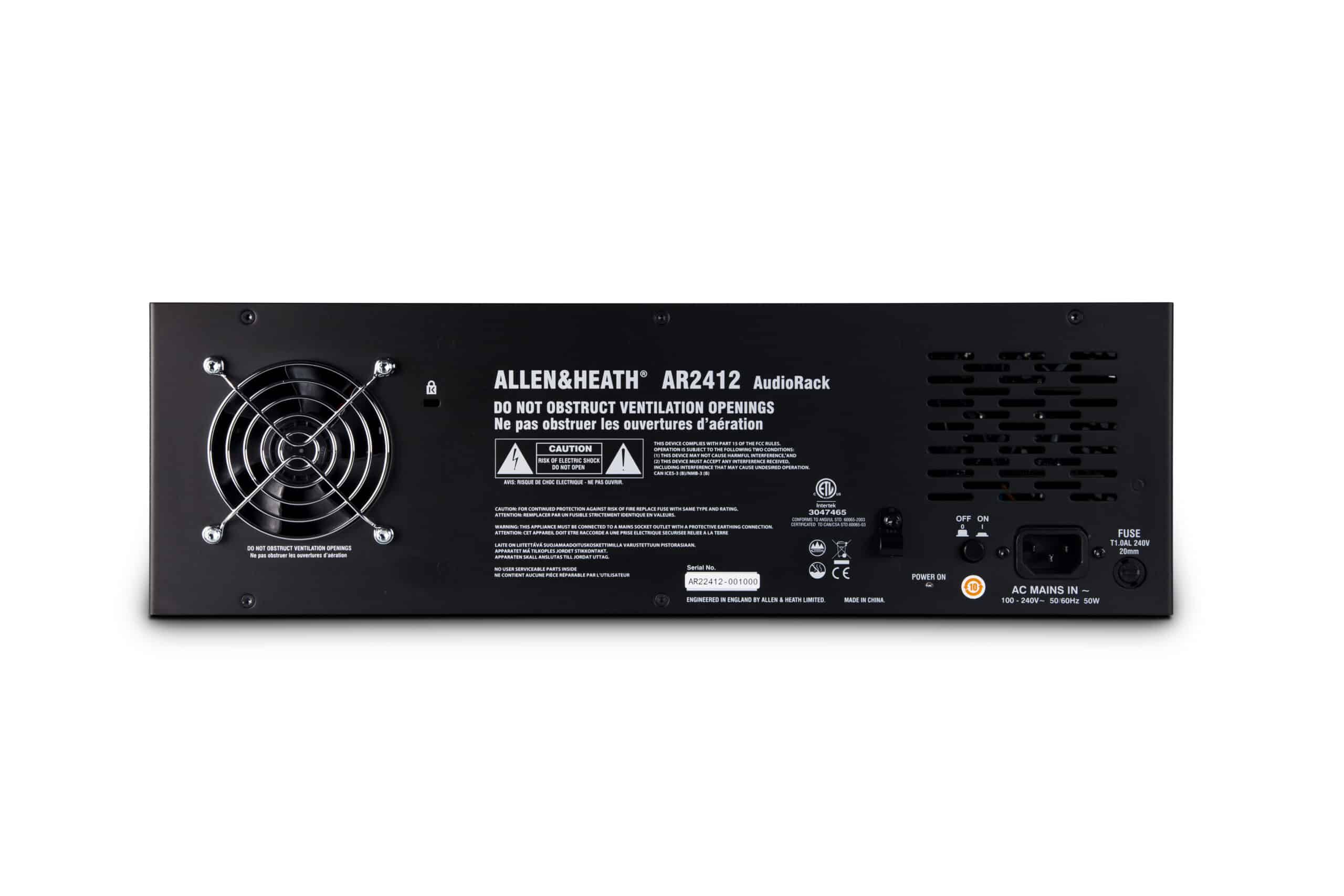

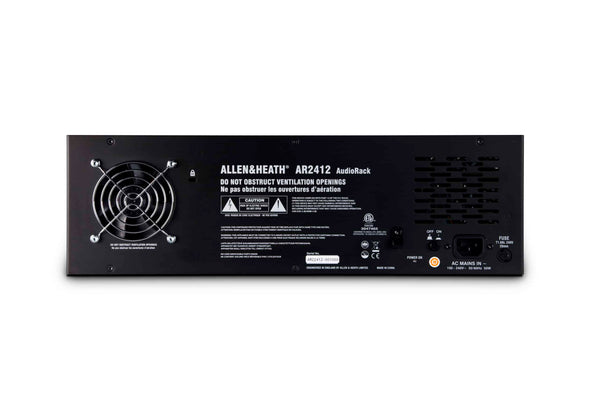

Allen & Heath AR2412 rear panel

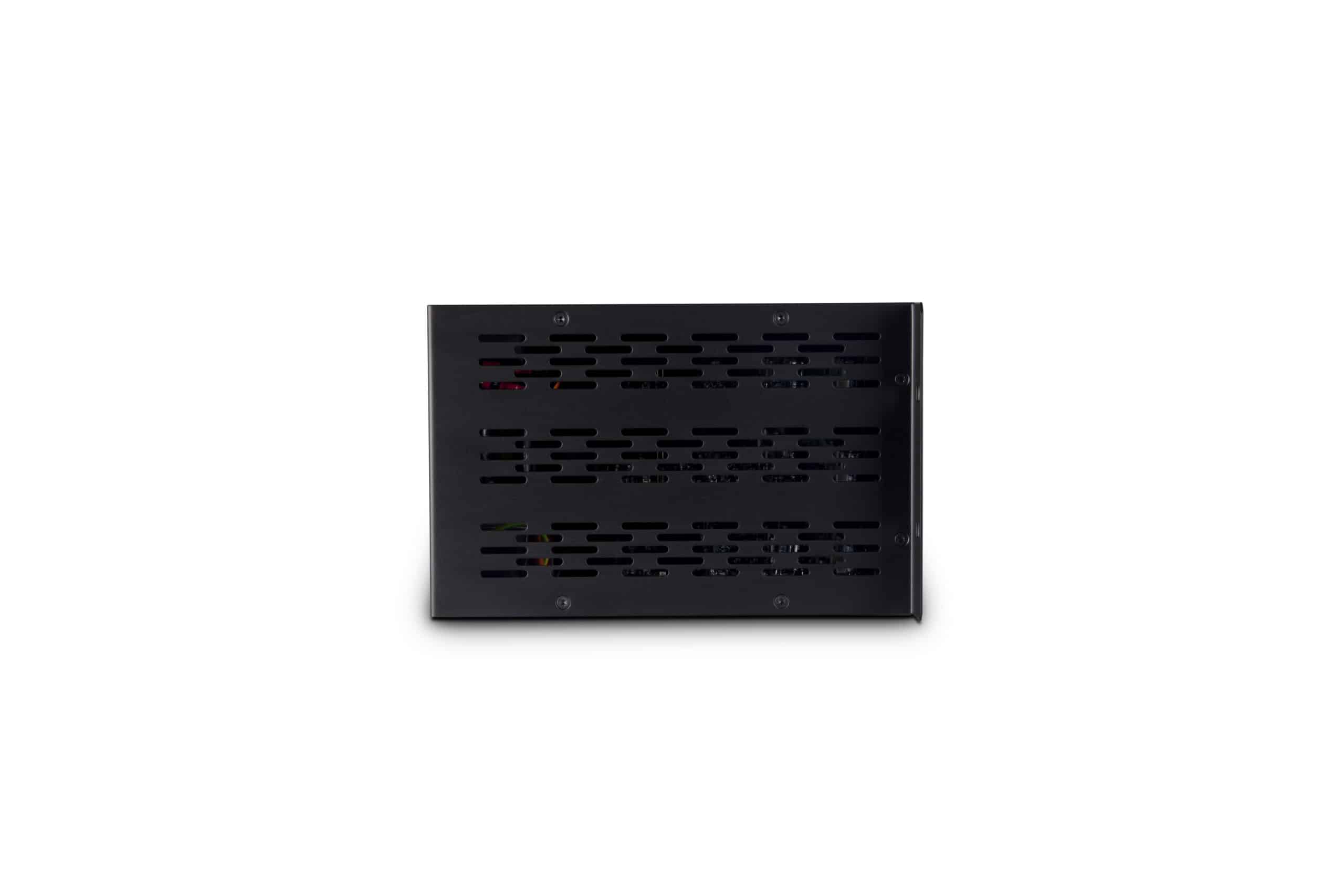

Allen & Heath AR2412 side view
Click image to open expanded view
Allen & Heath AR2412 AudioRack
Allen & Heath AR2412 front panel
Allen & Heath AR2412 rear panel
Allen & Heath AR2412 side view

Allen & Heath AR2412 24x12 AudioRack I/O Expander for Qu / SQ / Avantis

Allen & Heath
Sale price
$1,699
List price
$1,899
You save
$200 (11%)
Available now — ships from our shop or direct from the manufacturer

The Allen & Heath AR2412 is the workhorse 3U rack stage box for Qu, SQ and Avantis systems. 24 inputs and 12 outputs on stage, one Cat5 cable back to the mixer, and room to grow with an AR84 or AB168 on its expander port.

Highlights

  • 24 XLR mic/line inputs with recallable preamps (+5 to +60dB gain, -20dB pad)
  • 12 balanced, relay-protected XLR line outputs
  • dSNAKE protocol, 48kHz
  • Single Cat5 run up to 100m (328 ft)
  • Works with Qu (including Qu Classic), SQ / SQ+, Avantis and AHM-64
  • Expander port: add an AR84 or AB168 for up to 40 inputs / 20 outputs
  • Monitor port for ME-1 personal mixers (40 channels)
  • 3U 19" rack mount, steel chassis, rack ears included

Specs

  • Power: 100–240V 50/60Hz, 70W max
  • Dimensions: 19" x 8.6" x 5.4" (483 x 220 x 137mm)
  • Weight: 11 lb (5kg)

Condition: New, with full Allen & Heath manufacturer warranty.
