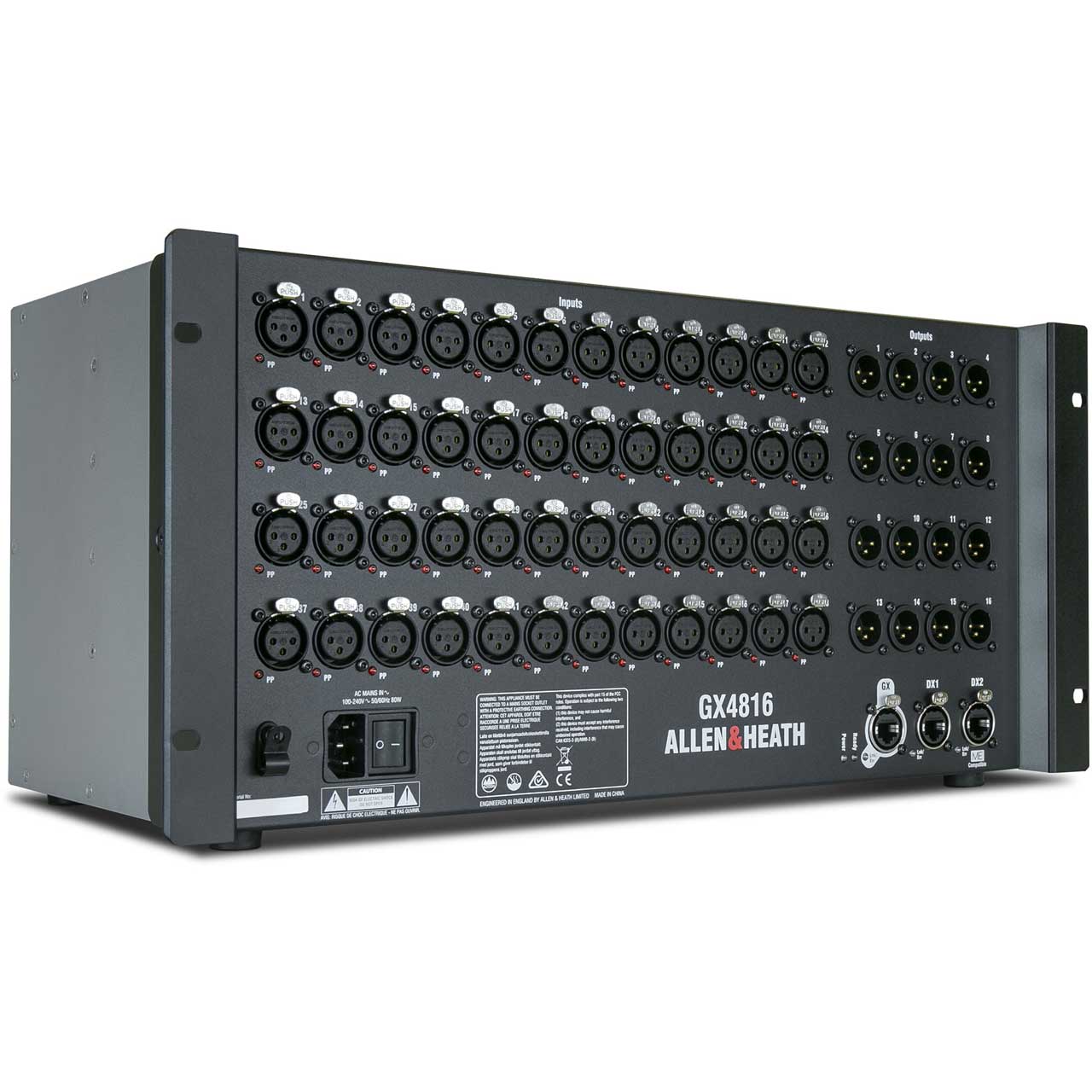

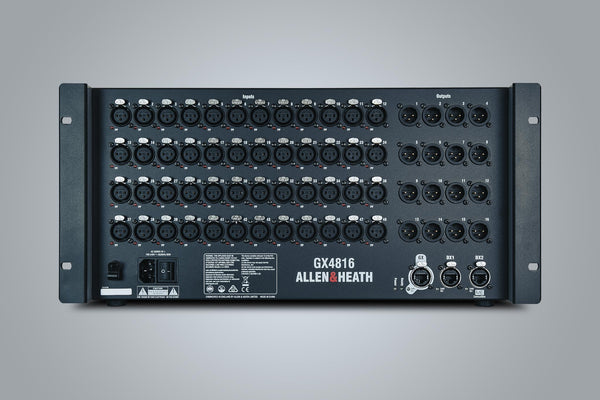

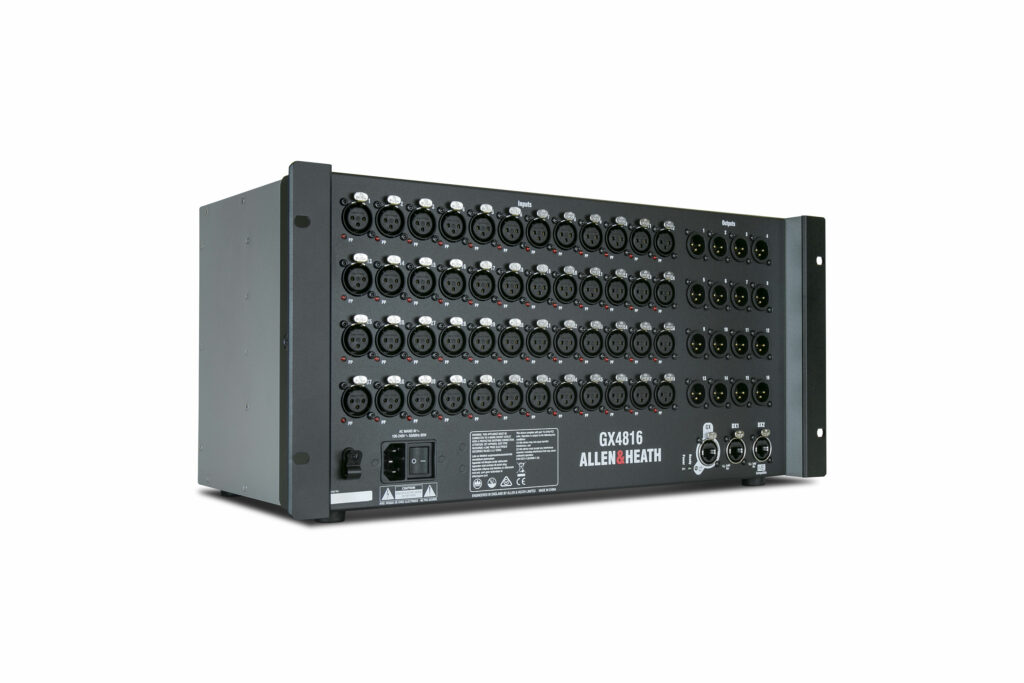

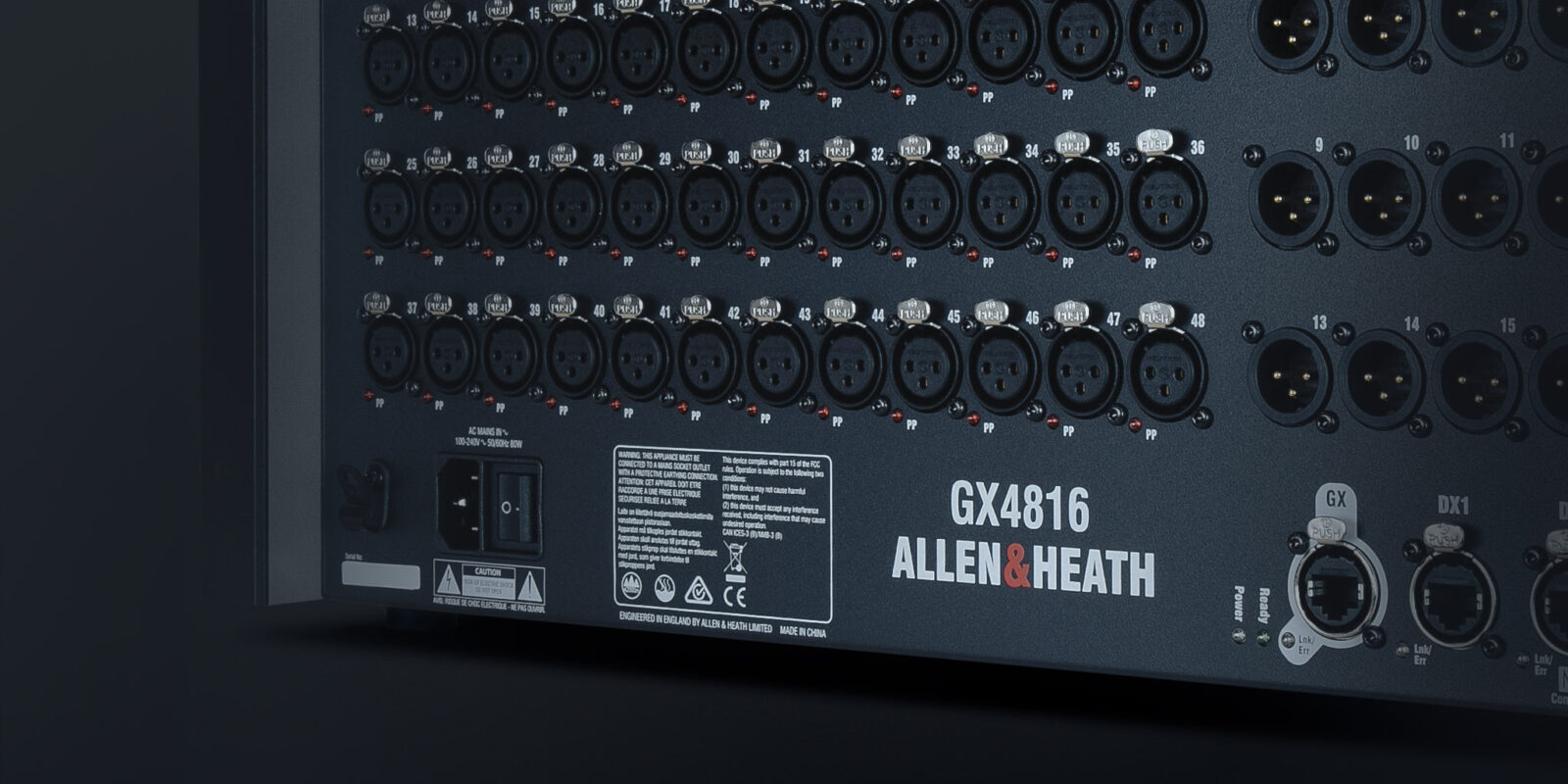

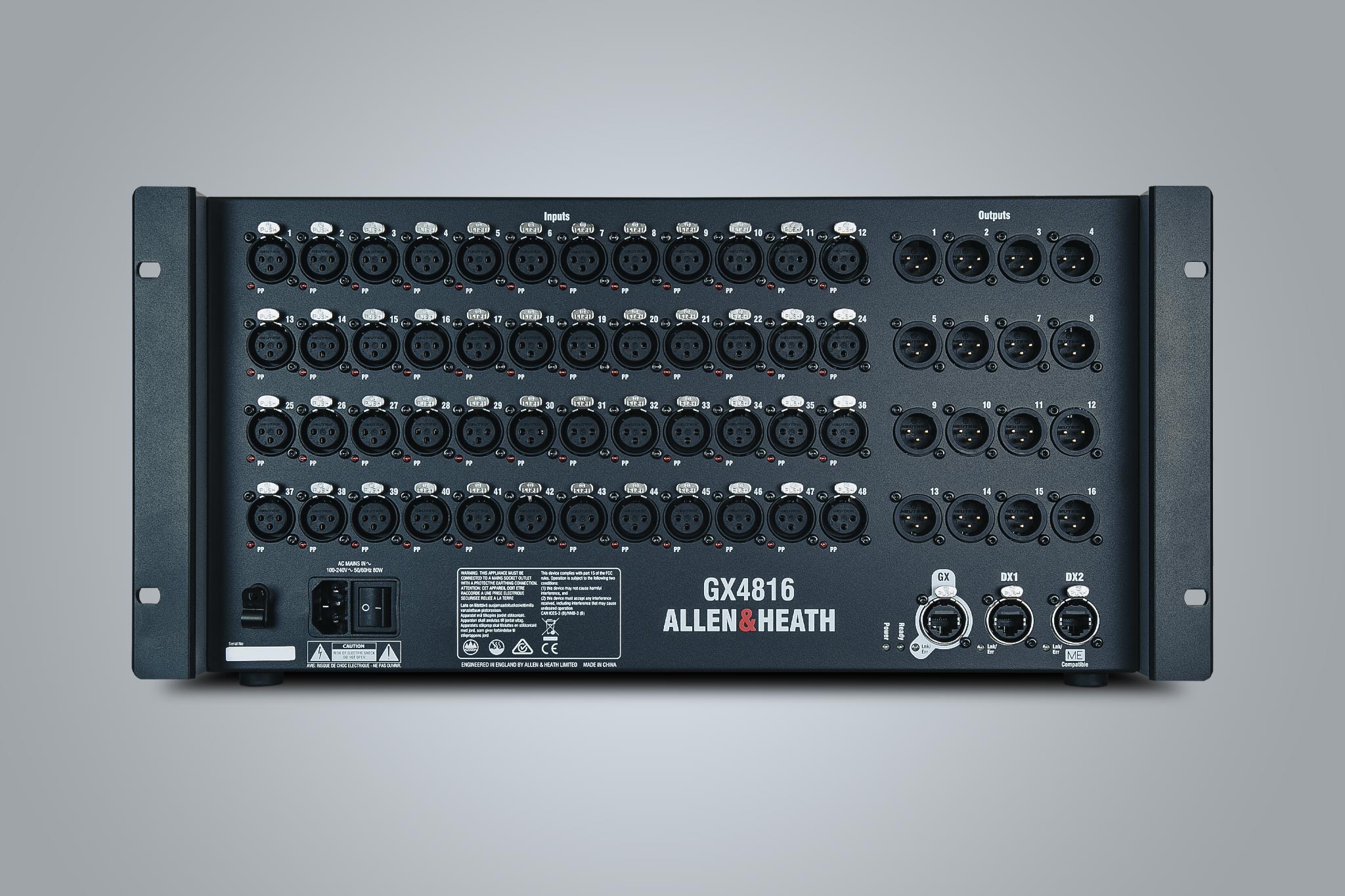

Allen & Heath GX4816 48x16 96kHz Portable GX Expander with DX Sockets

Allen & Heath
Sale price
$4,799
List price
$4,999
You save
$200 (5%)
Available now — ships from our shop or direct from the manufacturer

The Allen & Heath GX4816 puts a full 48-input, 16-output stage rack on one cable. It runs at 96kHz with dLive-class preamps, and its two DX ports let you hang more DX expanders or ME personal monitoring off the same box.

Highlights

  • 48 XLR mic/line inputs with +48V phantom (LED per input) and recallable preamps (+5 to +60dB gain, -20dB pad)
  • 16 balanced, relay-protected XLR line outputs
  • GX protocol, 96kHz, locking EtherCON
  • Cat5e STP up to 100m (Qu SLink requires Cat6a, max 80m)
  • Works with SQ / SQ+, Avantis, dLive (gigaACE card), AHM-64 and the 96kHz Qu models
  • DX1 and DX2/ME ports: add up to 4 DX expanders, or ME personal monitoring (SQ and Avantis)
  • 5U 19" rack mount, or use on a shelf or the floor

Specs

  • Power: 100–240V 50/60Hz, 80W max, IEC lead included
  • Dimensions: 18.9" x 10" x 9" (480 x 254 x 228mm)
  • Weight: 17.6 lb (8kg)

Condition: New, with full Allen & Heath manufacturer warranty.
