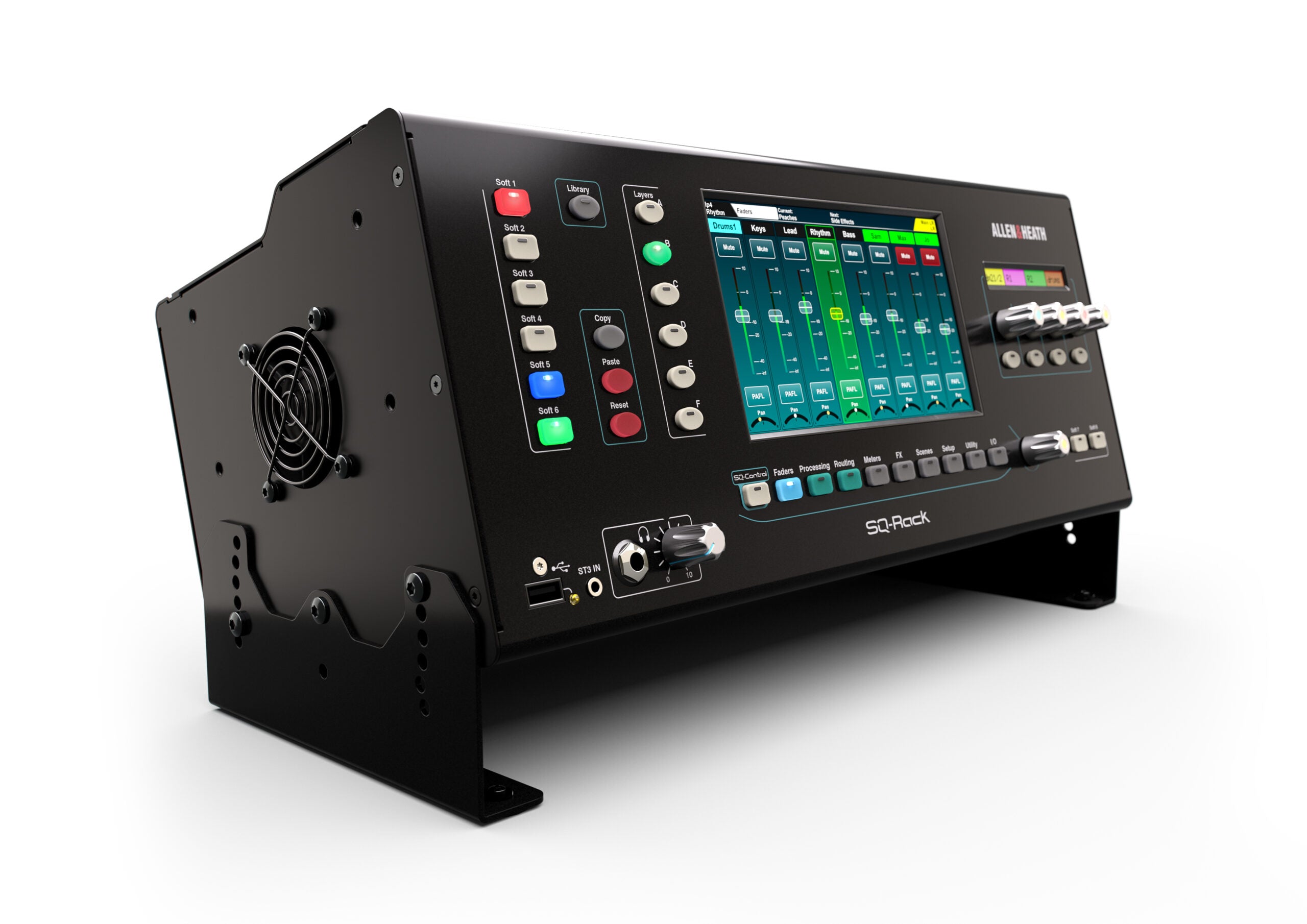

Allen & Heath SQ-Rack digital mixer

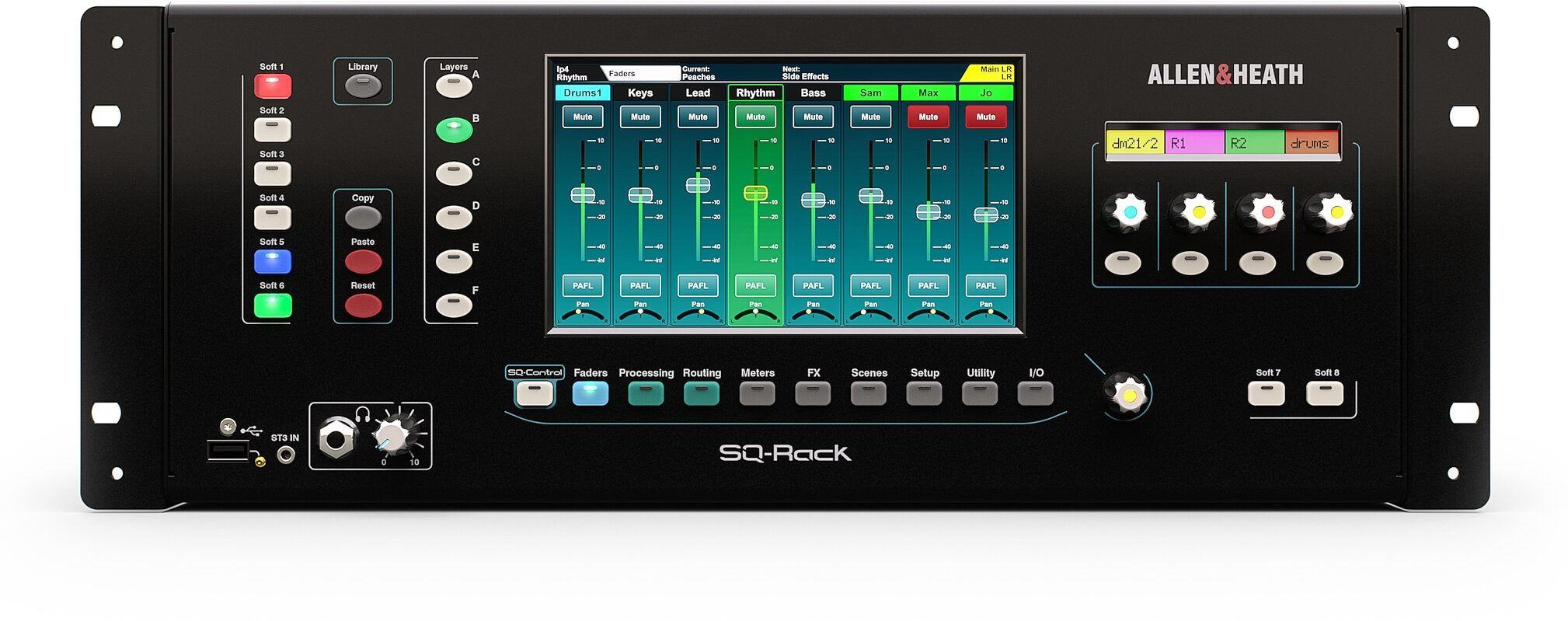

Allen & Heath SQ-Rack front panel

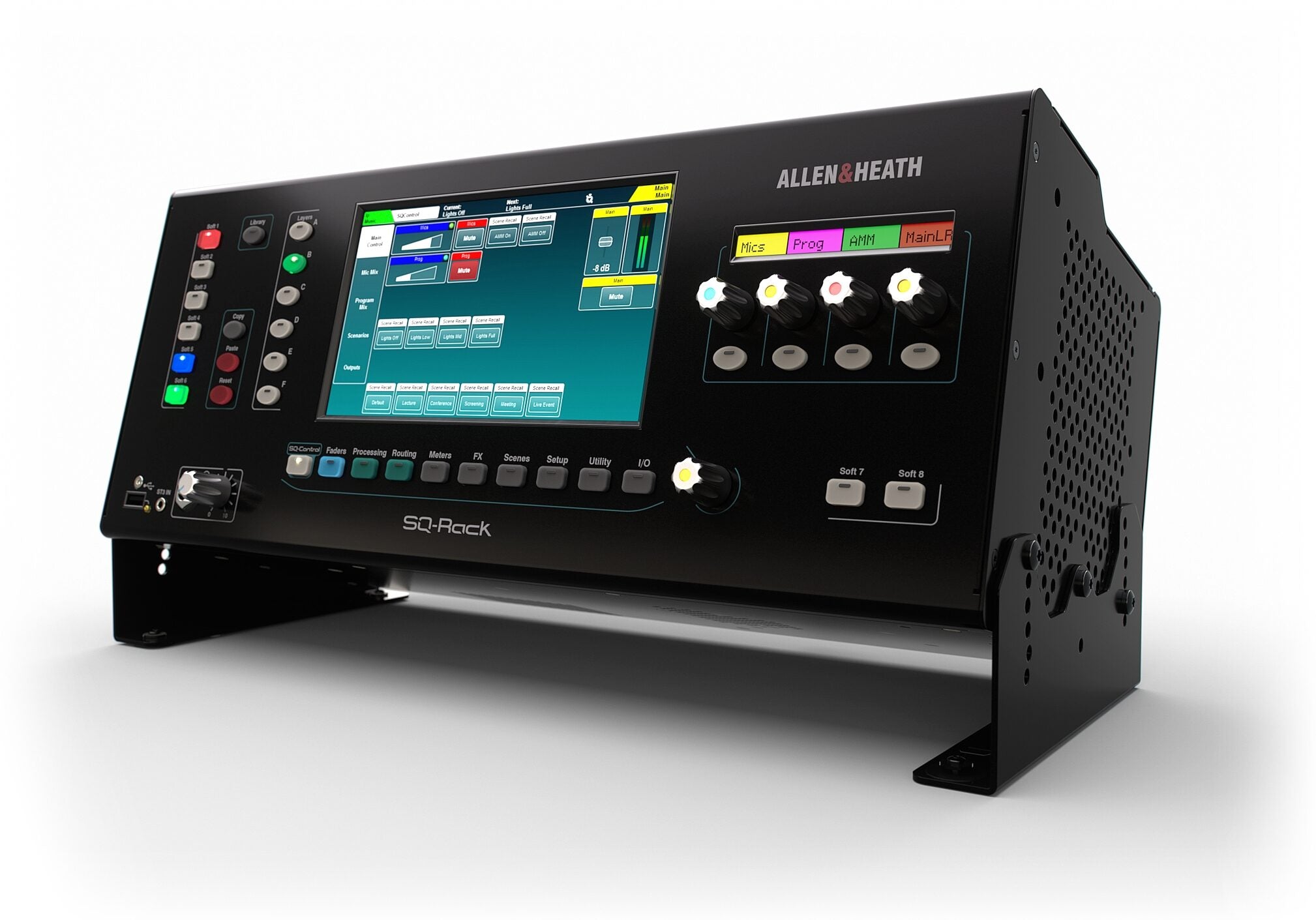

Allen & Heath SQ-Rack angled view

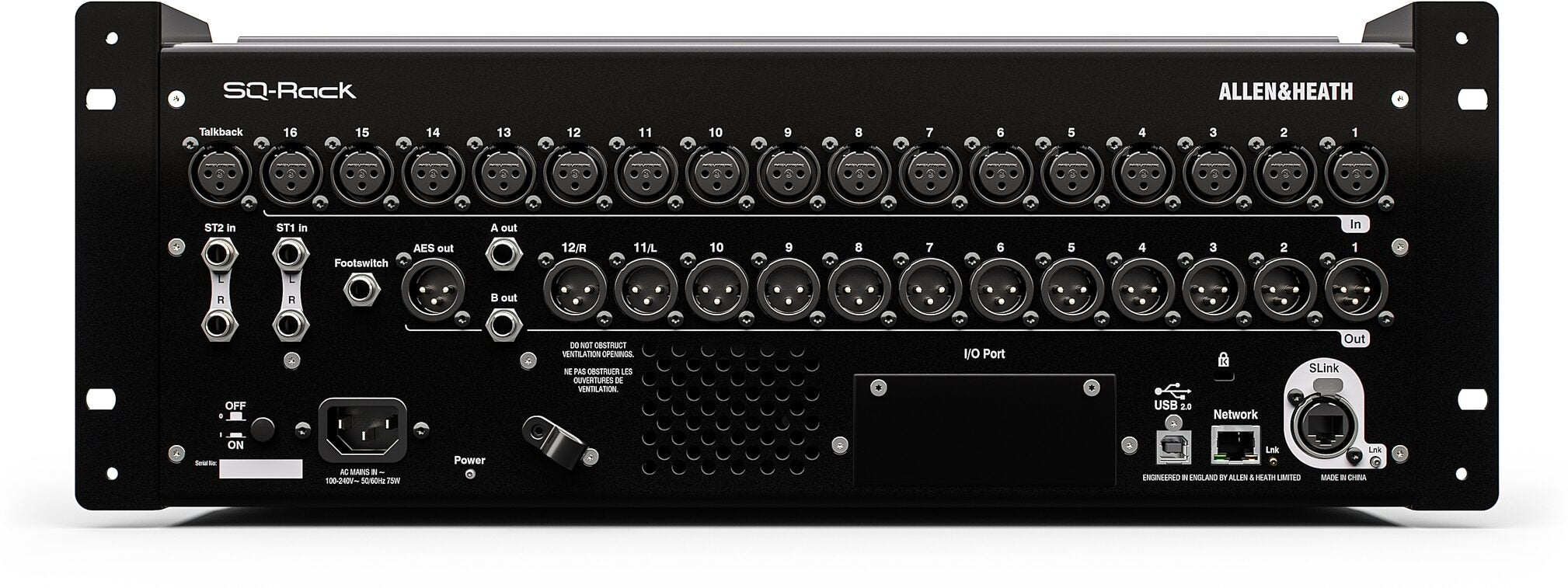

Allen & Heath SQ-Rack rear panel
Click image to open expanded view
Allen & Heath SQ-Rack digital mixer
Allen & Heath SQ-Rack front panel
Allen & Heath SQ-Rack angled view
Allen & Heath SQ-Rack rear panel

Allen & Heath SQ-Rack 48-Channel 36-Bus 96kHz Rackmount Digital Mixer

Allen & Heath
Sale price
$2,799
List price
$2,999
You save
$200 (7%)
Available now — ships from our shop or direct from the manufacturer

The Allen & Heath SQ-Rack puts the full SQ engine in a shallow 4U rack. Mix from the 7" touchscreen, from an iPad or laptop with SQ-MixPad and SQ4You, or add a control surface later. A great fit for installs, portable rigs and in-ear monitor racks.

Highlights

  • 48 input channels on a 96kHz XCVI FPGA core, under 0.7ms latency
  • 36 buses: 12 stereo mixes plus LR, 3 stereo matrices
  • 16 XLR mic/line preamps plus talkback, 3 stereo line inputs
  • 12 XLR outputs, 2 TRS outputs, AES out and headphone output
  • 7" capacitive touchscreen, 8 SoftKeys, 4 SoftRotaries (no faders)
  • 8 stereo FX engines
  • SLink port (expand to 48 mic inputs with A&H expanders) plus 64x64 I/O port (Dante, Waves, MADI, SLink)
  • 32x32 96kHz USB audio interface plus SQ-Drive recording
  • Works with SQ-MixPad, SQ-Control and SQ4You apps
  • 4U 19" rack, shallow depth, multi-position rack ears included

Specs

  • Power: internal supply, 100–240V AC, 75W max
  • Dimensions: 16.9" W x 8.4" H x 6.8" D (without rack ears)

Condition: New, with full Allen & Heath manufacturer warranty.
