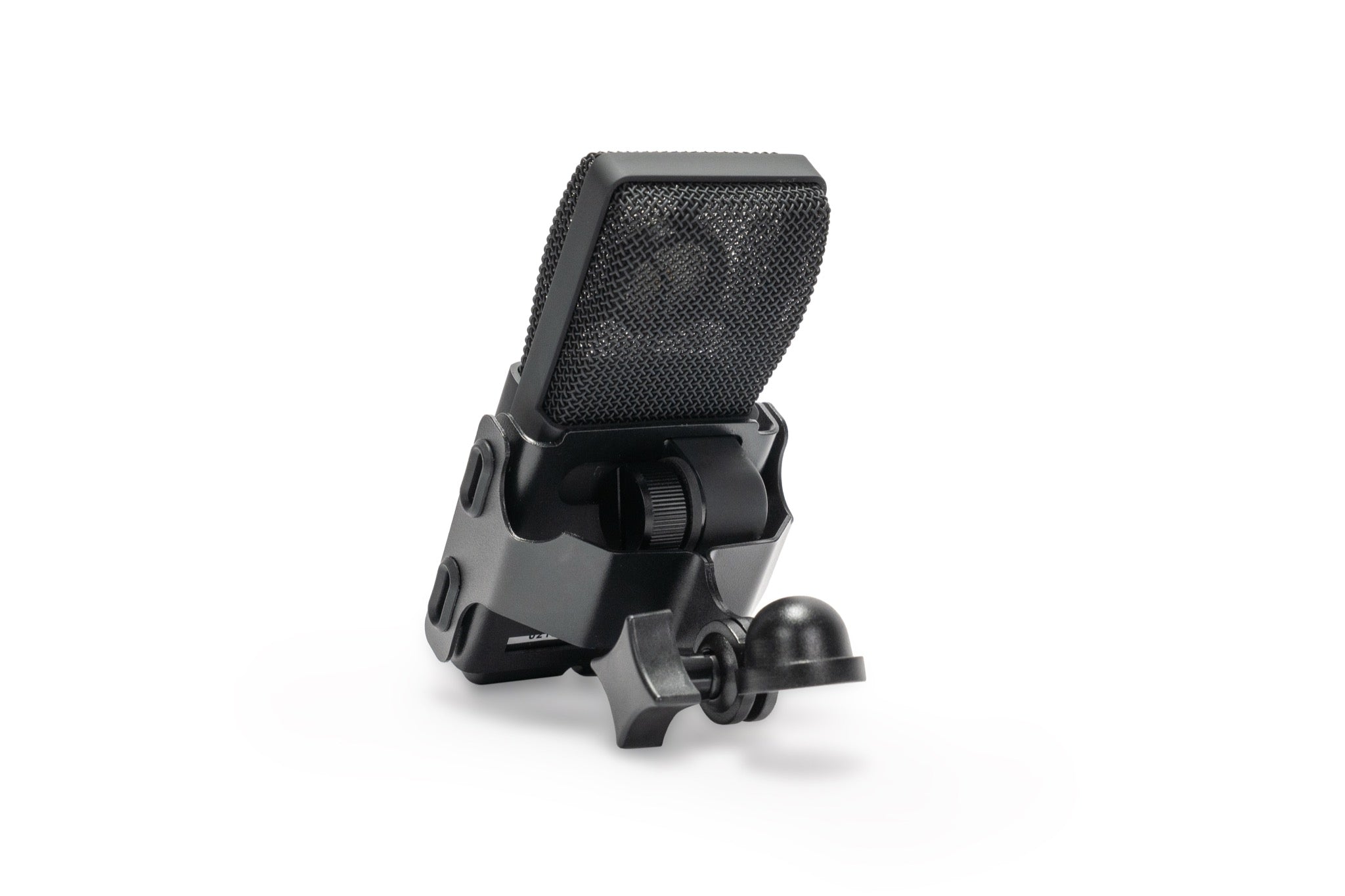

CAD Audio E100Sx Large Diaphragm Supercardioid Condenser Microphone

The CAD Audio E100Sx is a large-diaphragm condenser microphone built to capture the natural, smooth tone of vocals, percussion, and acoustic instruments with minimal coloration.

This fourth-generation version of the E100 features a narrow supercardioid pickup pattern that focuses audio capture tightly in front of the mic, rejecting ambient noise from the back and sides. The sensitive 1" nickel-plated diaphragm delivers a full, rich sound with a hint of vintage coloration and extended low-end response, making it well suited to studio recording, voice-over, podcasting, and sound reinforcement work.

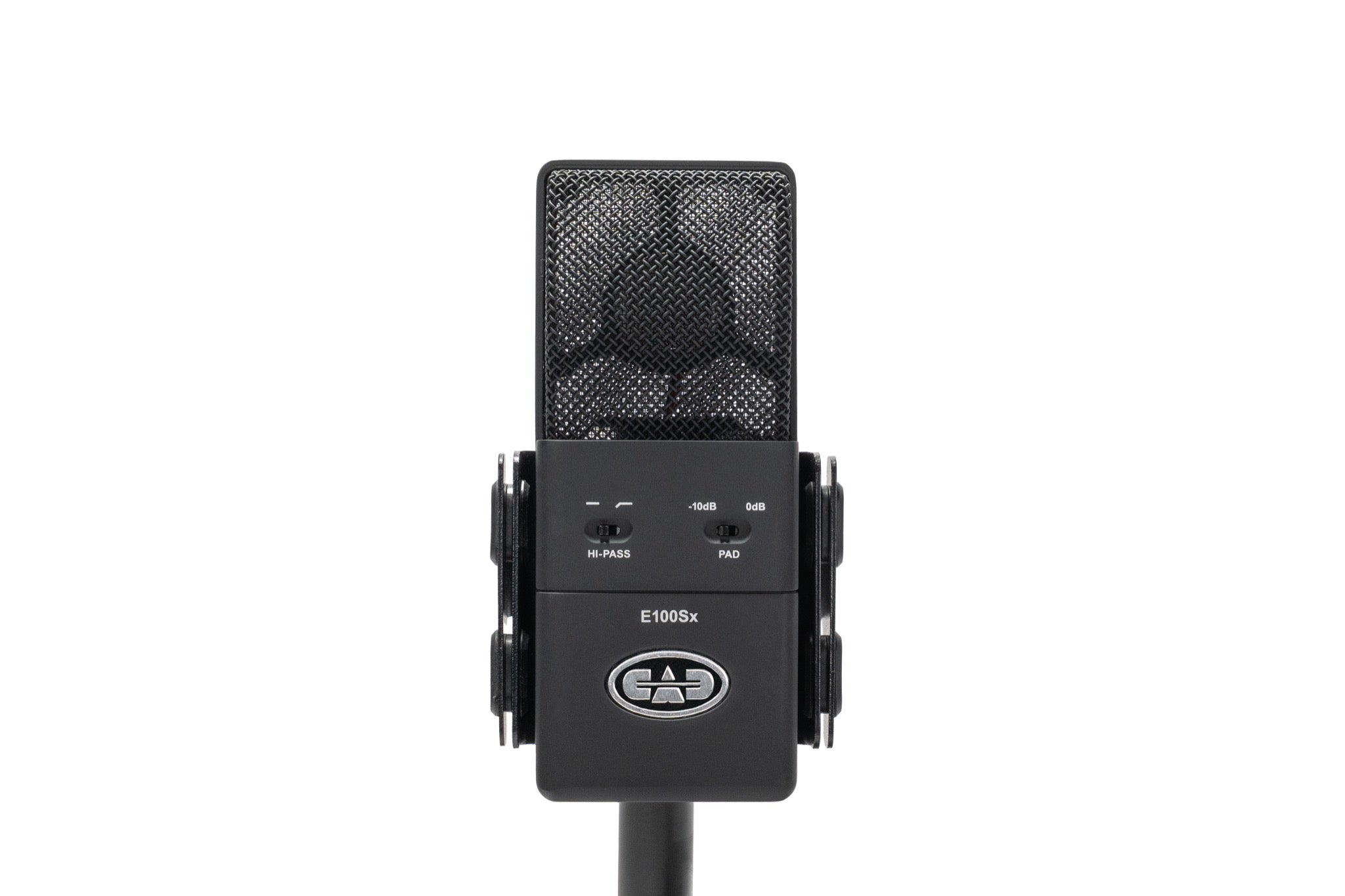

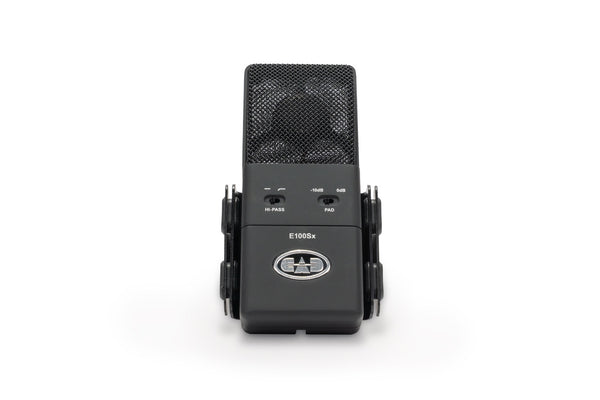

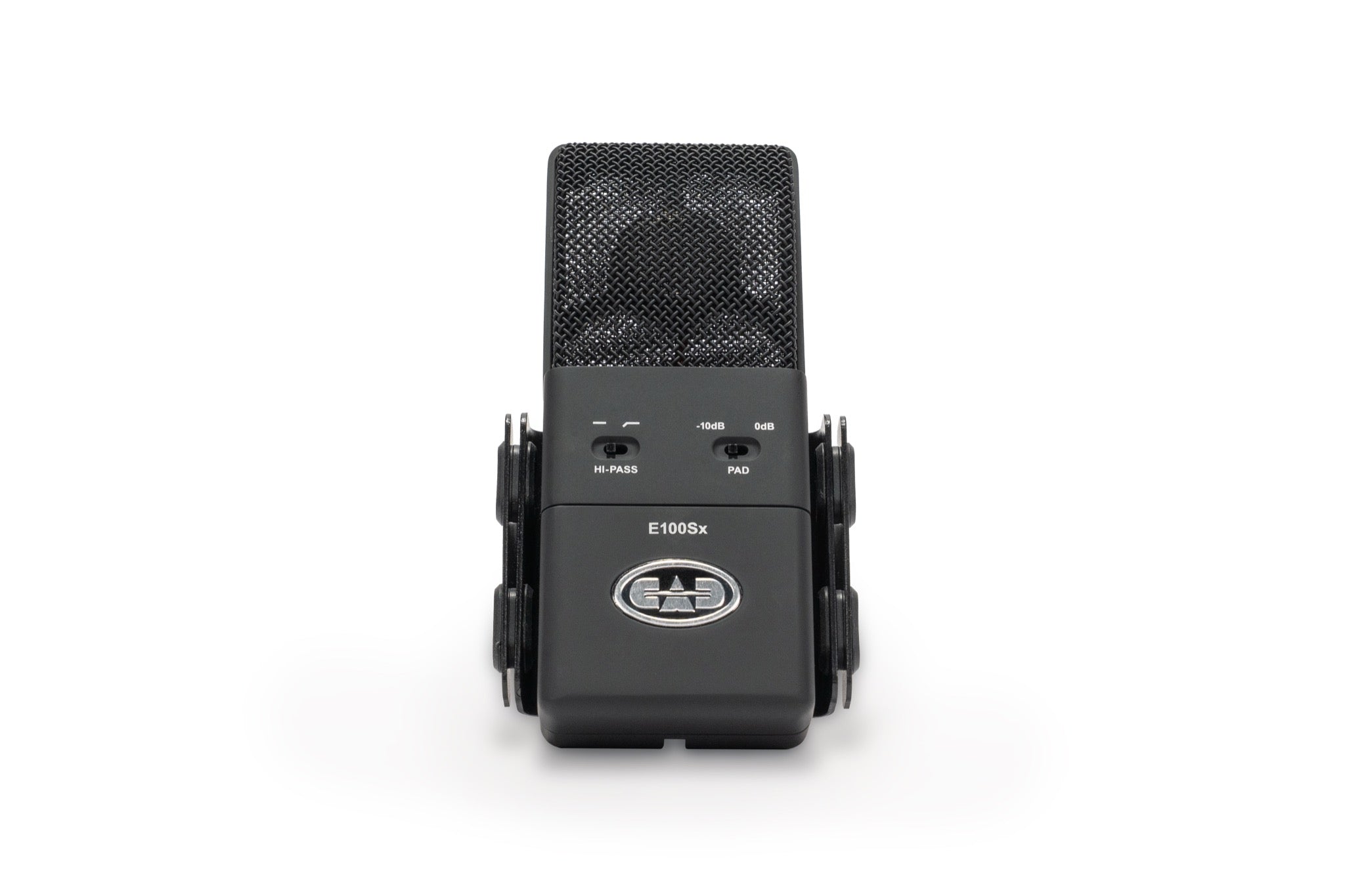

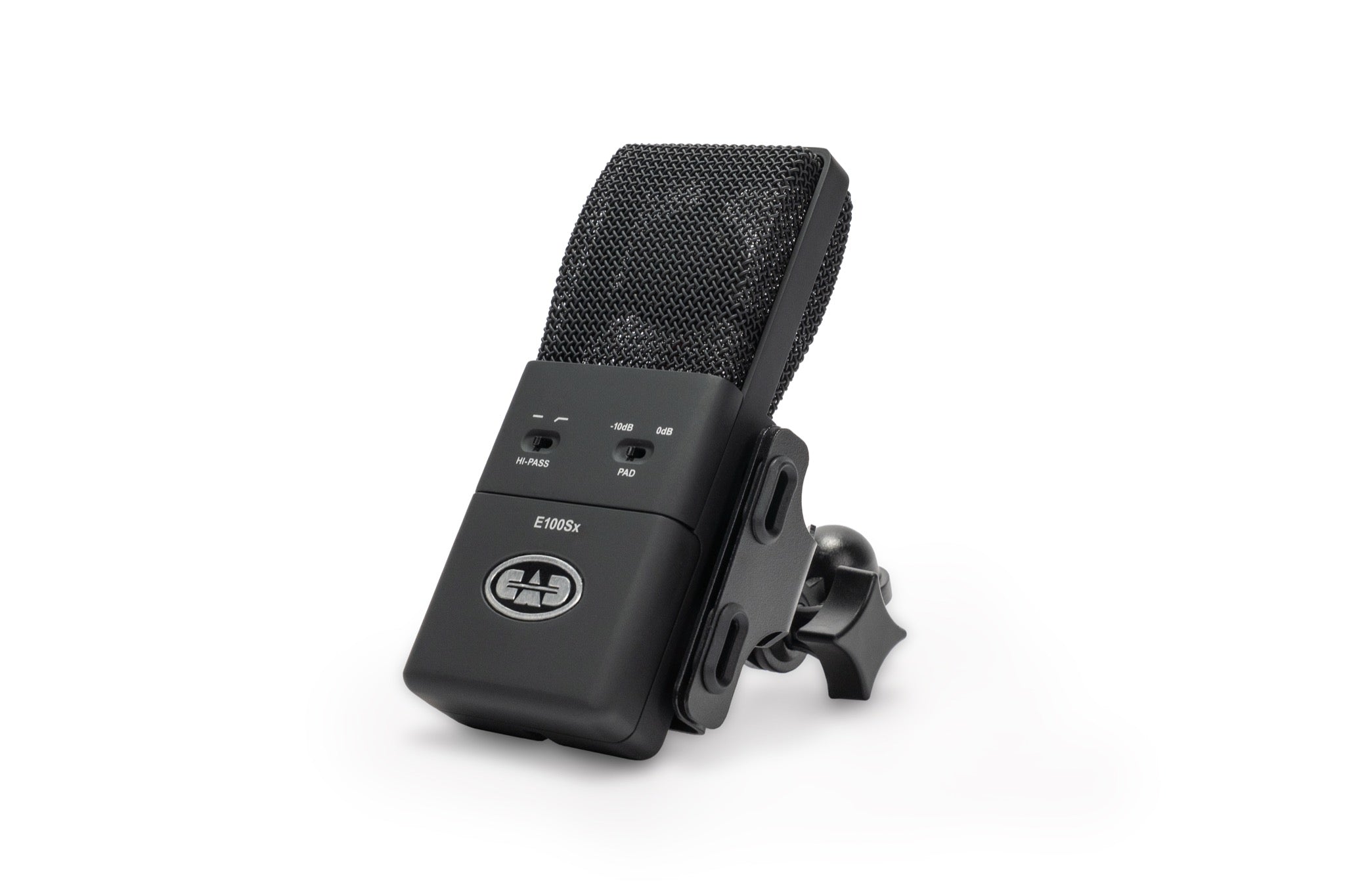

An integrated 100Hz high-pass filter removes unwanted low-end rumble, and a -10dB pad raises the maximum SPL to 136dB for use on louder sources. The included low-profile shockmount absorbs vibration and handling noise to keep recordings clean. Requires 48V phantom power.

Features

• Large-diaphragm condenser microphone
• Narrow supercardioid pickup pattern
• 1" nickel-plated diaphragm with vintage-flavored coloration
• Integrated 100Hz high-pass filter, 6dB/octave
• -10dB pad for up to 136dB max SPL

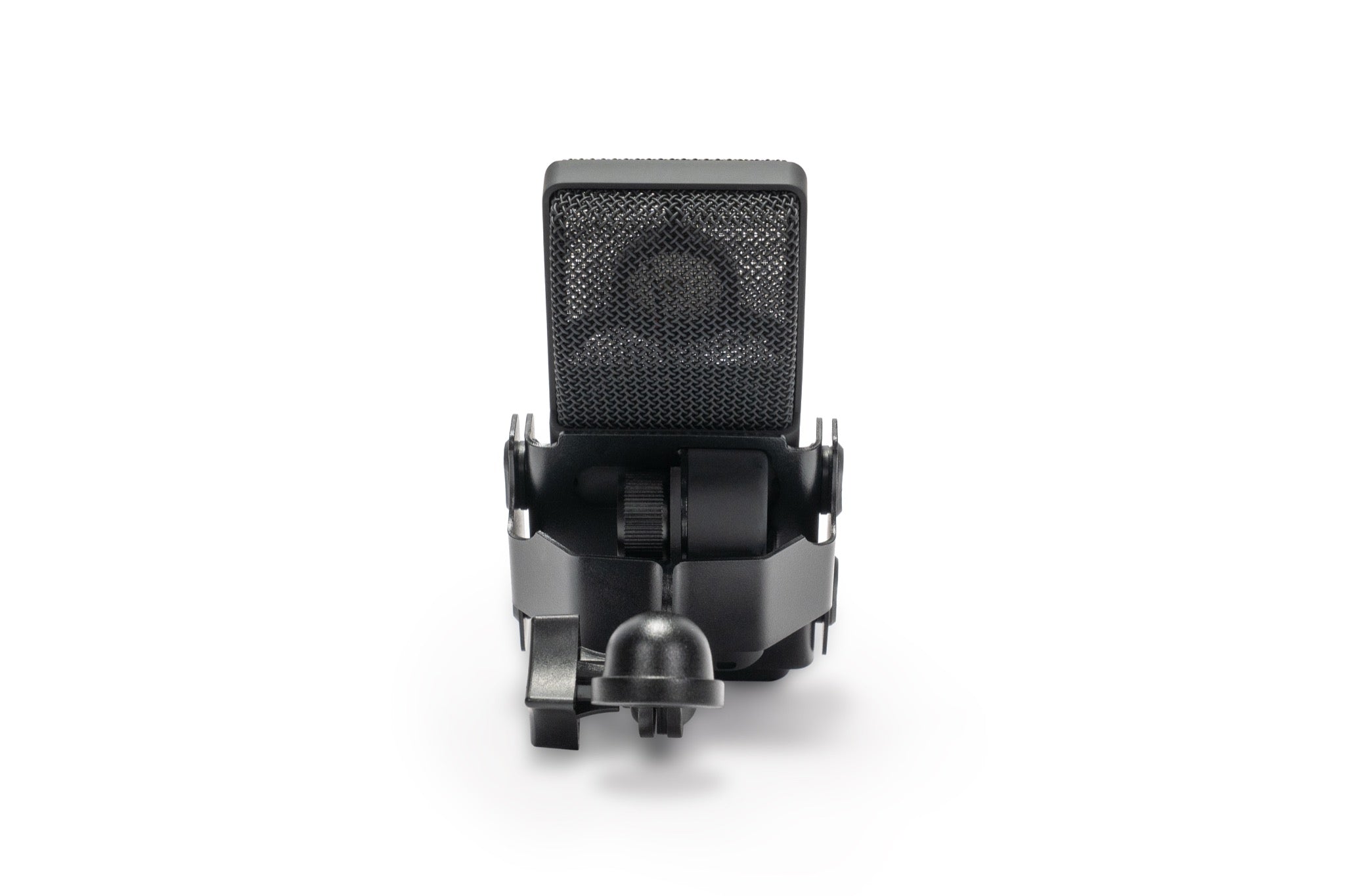

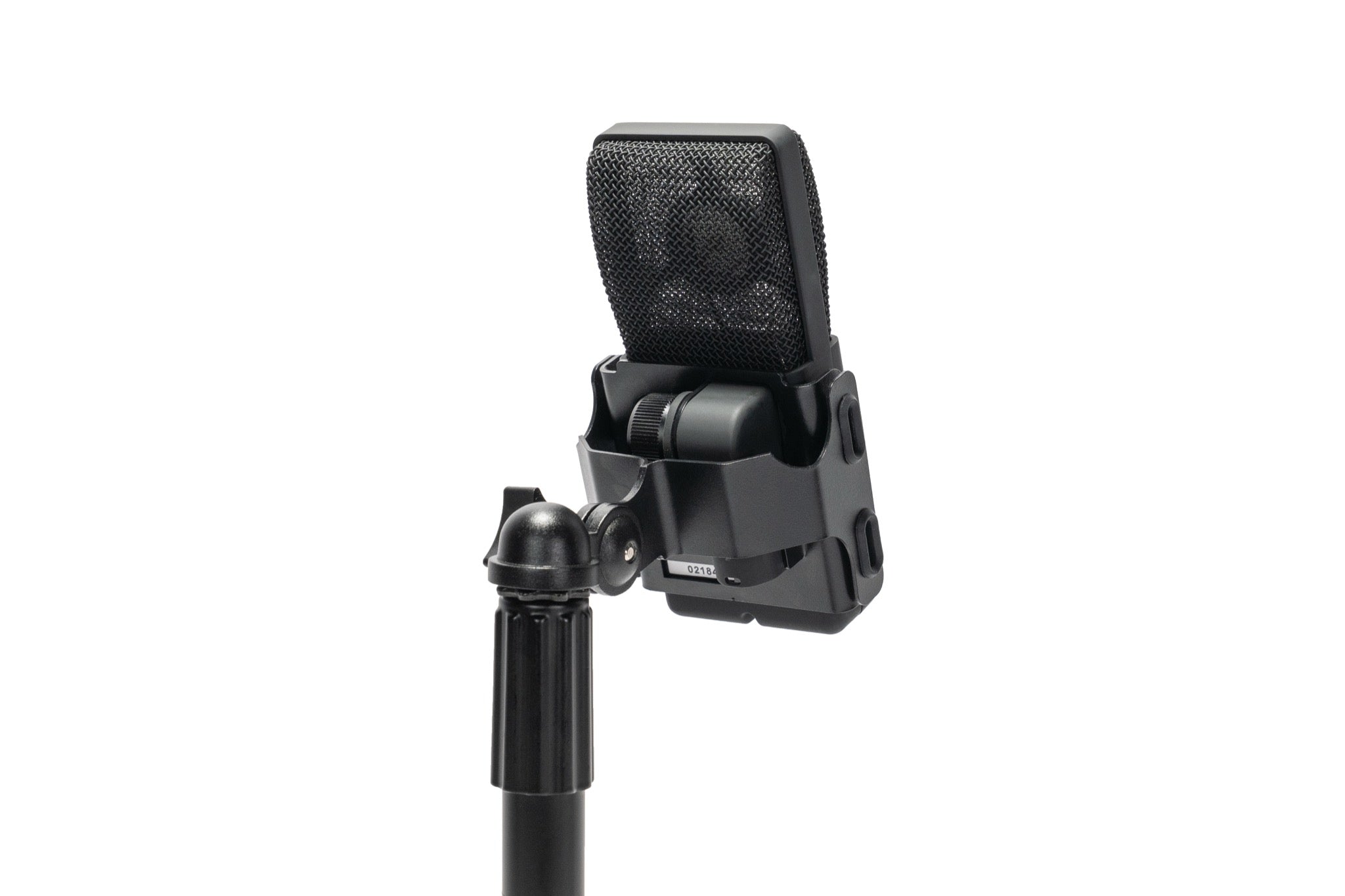

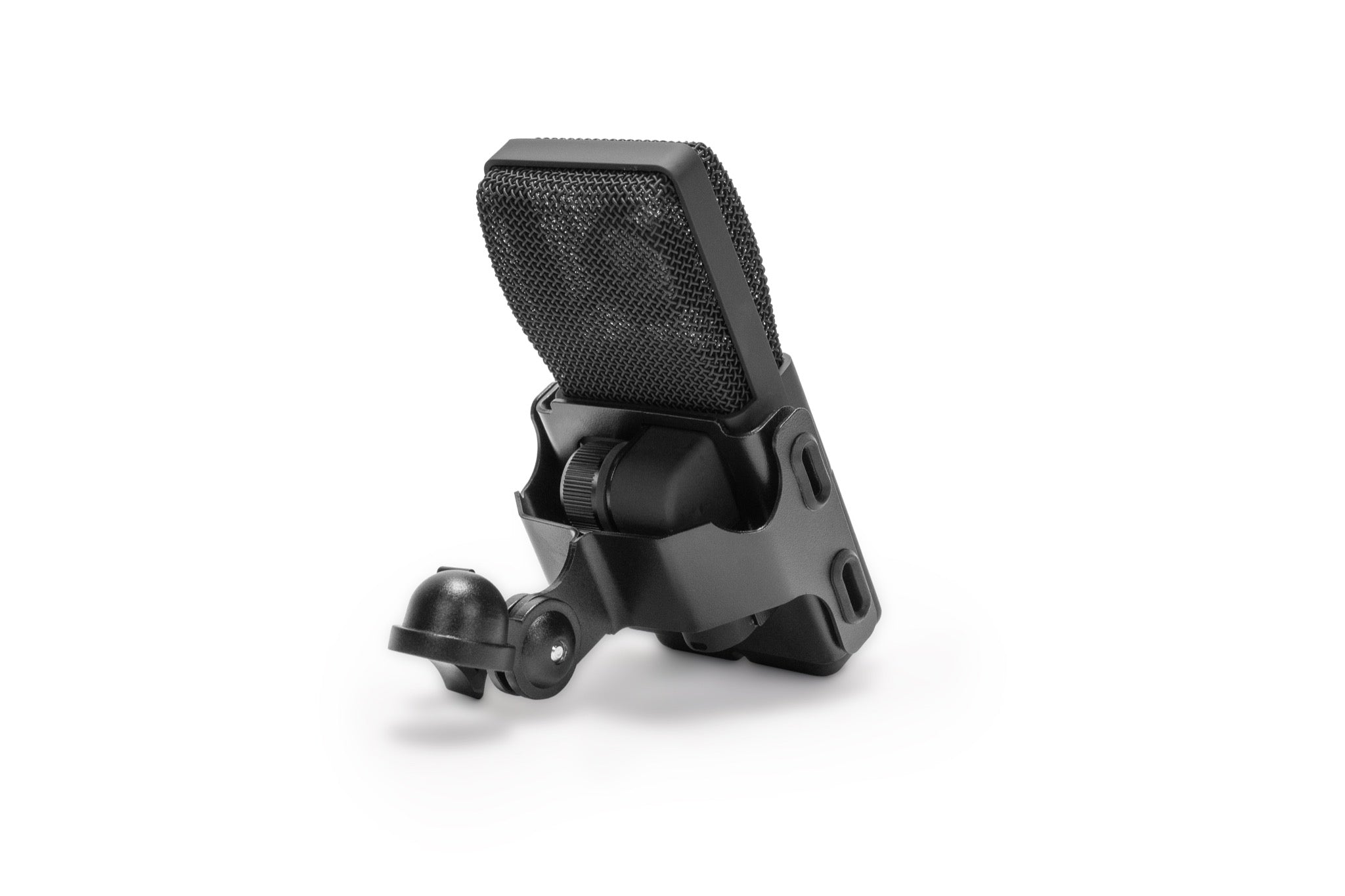

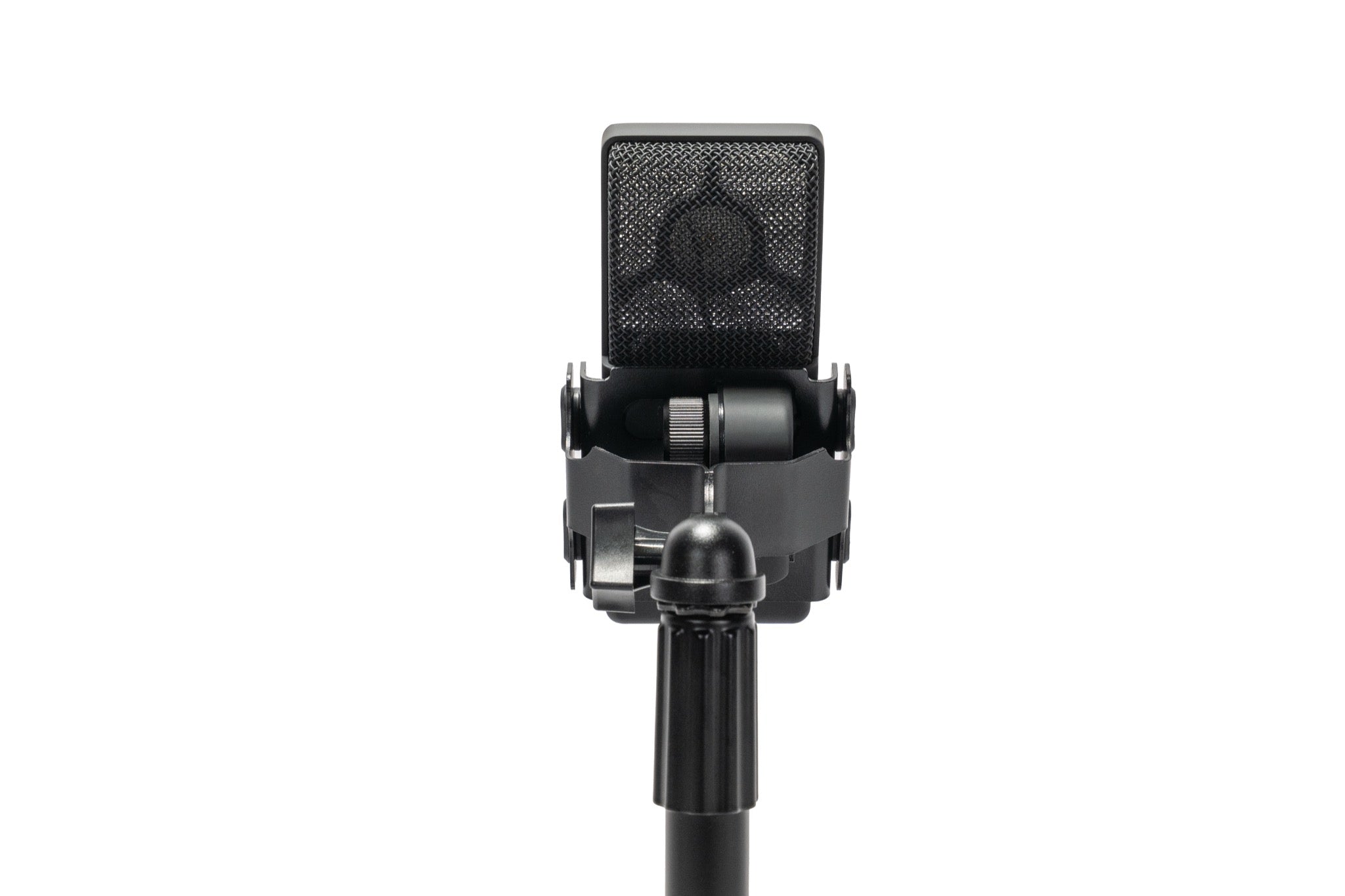

• Includes low-profile shockmount
• Well suited to vocals, percussion, acoustic instruments, voice-over, and podcasting
• Requires 48V phantom power

Specifications

• Operating Principle: Condenser
• Polar Pattern: Supercardioid
• Frequency Response: 20Hz - 18kHz
• Sensitivity: -32dBV (25mV) @ 1Pa
• Impedance: 150 ohms
• Max SPL: 136dB (with pad engaged)
• Self Noise: 9.5dBA
• High Pass Filter: 100Hz, 6dB/octave
• Power Requirements: P48 phantom power, 1.6mA
• Weight: 1.98 lbs (0.9kg)
• Included: Low-profile shockmount
