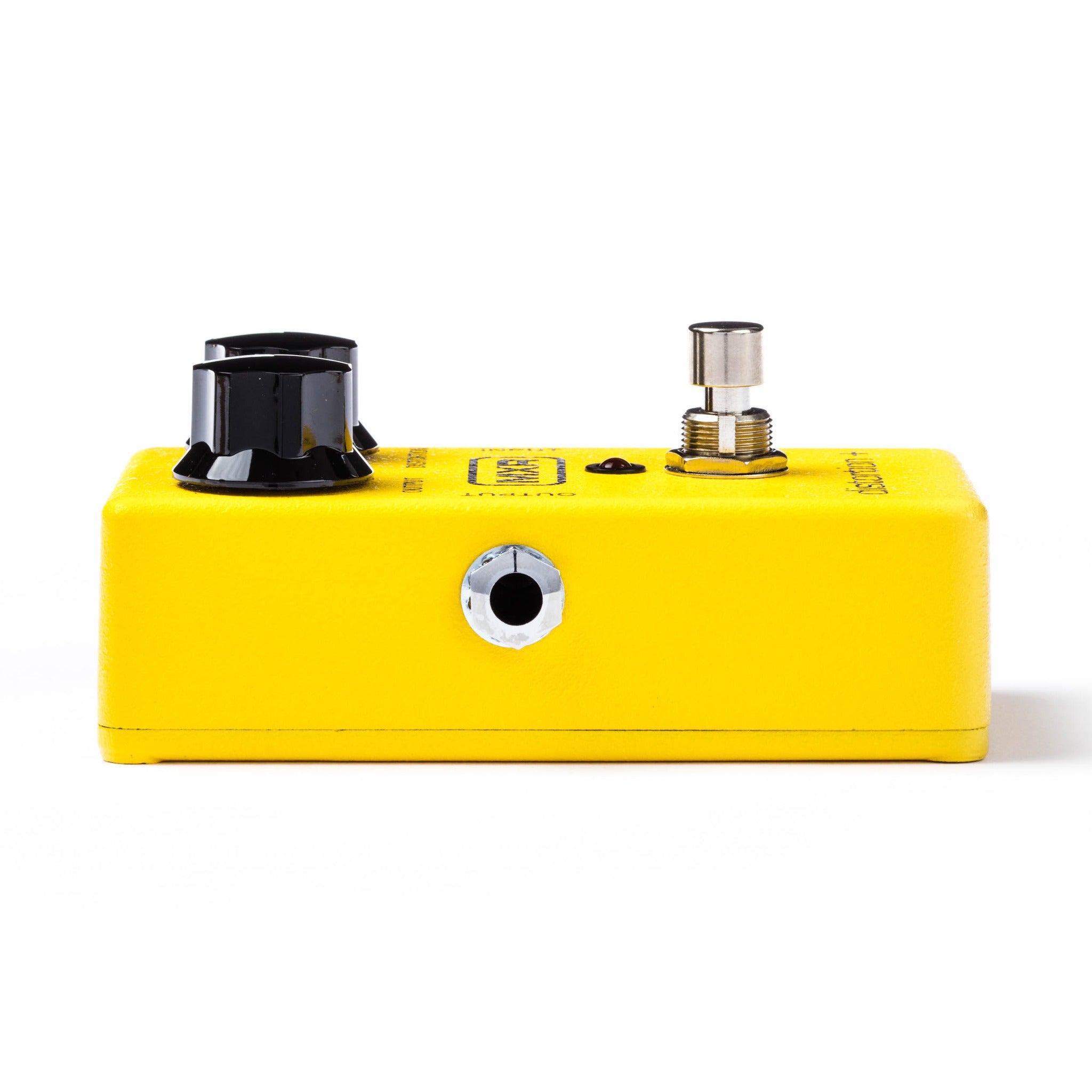

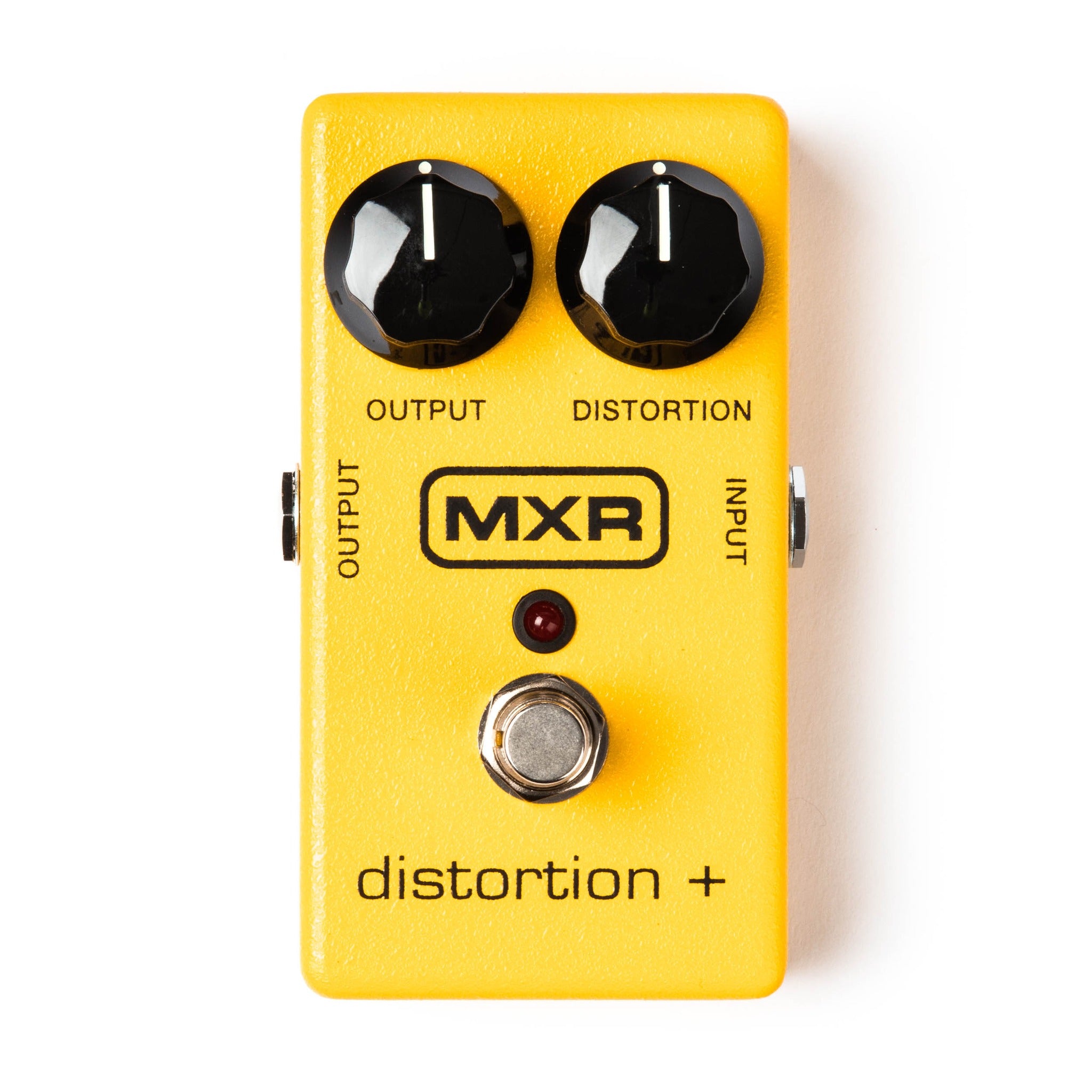

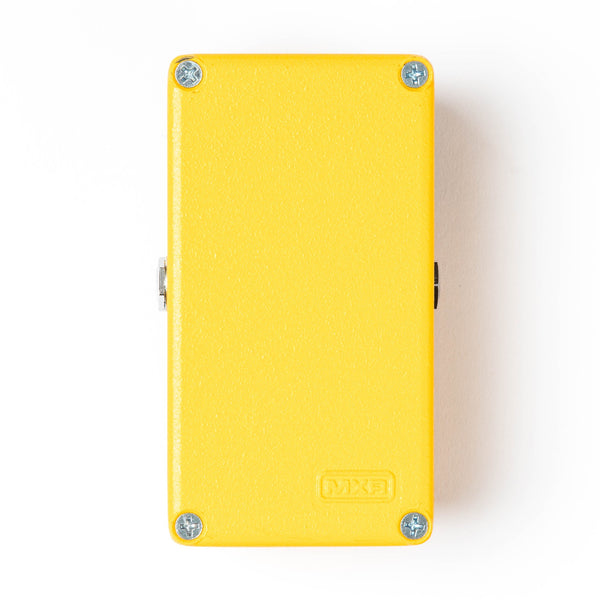

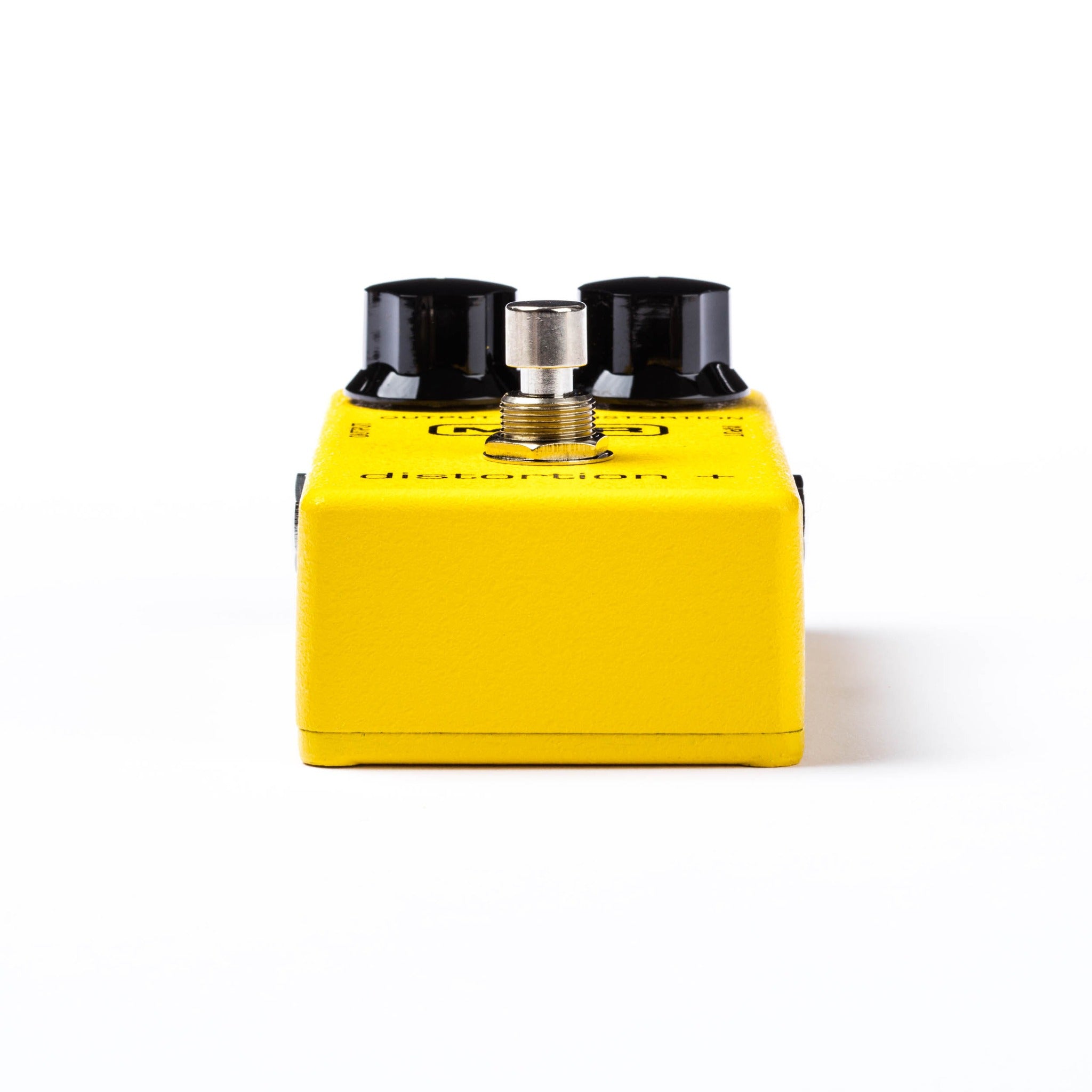

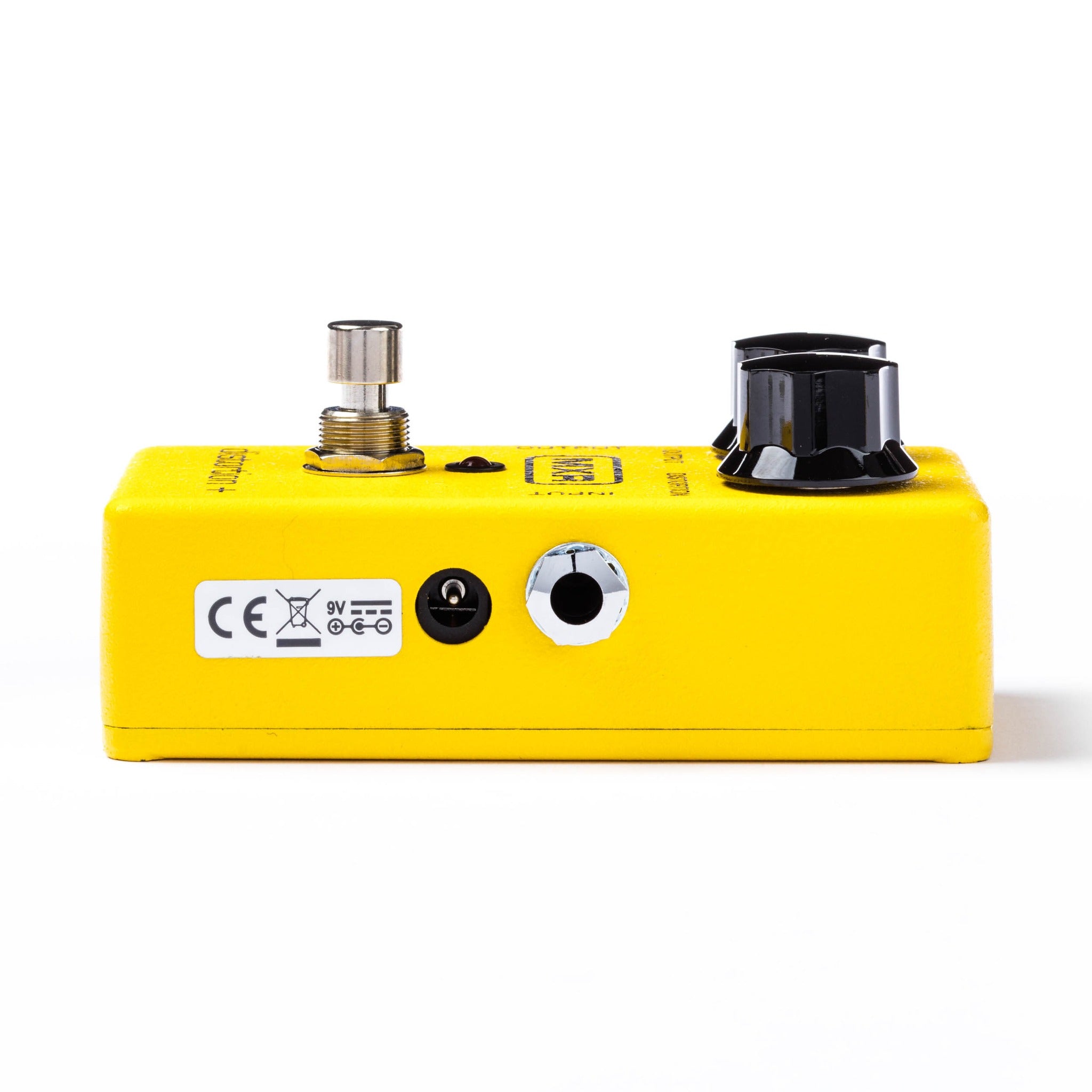

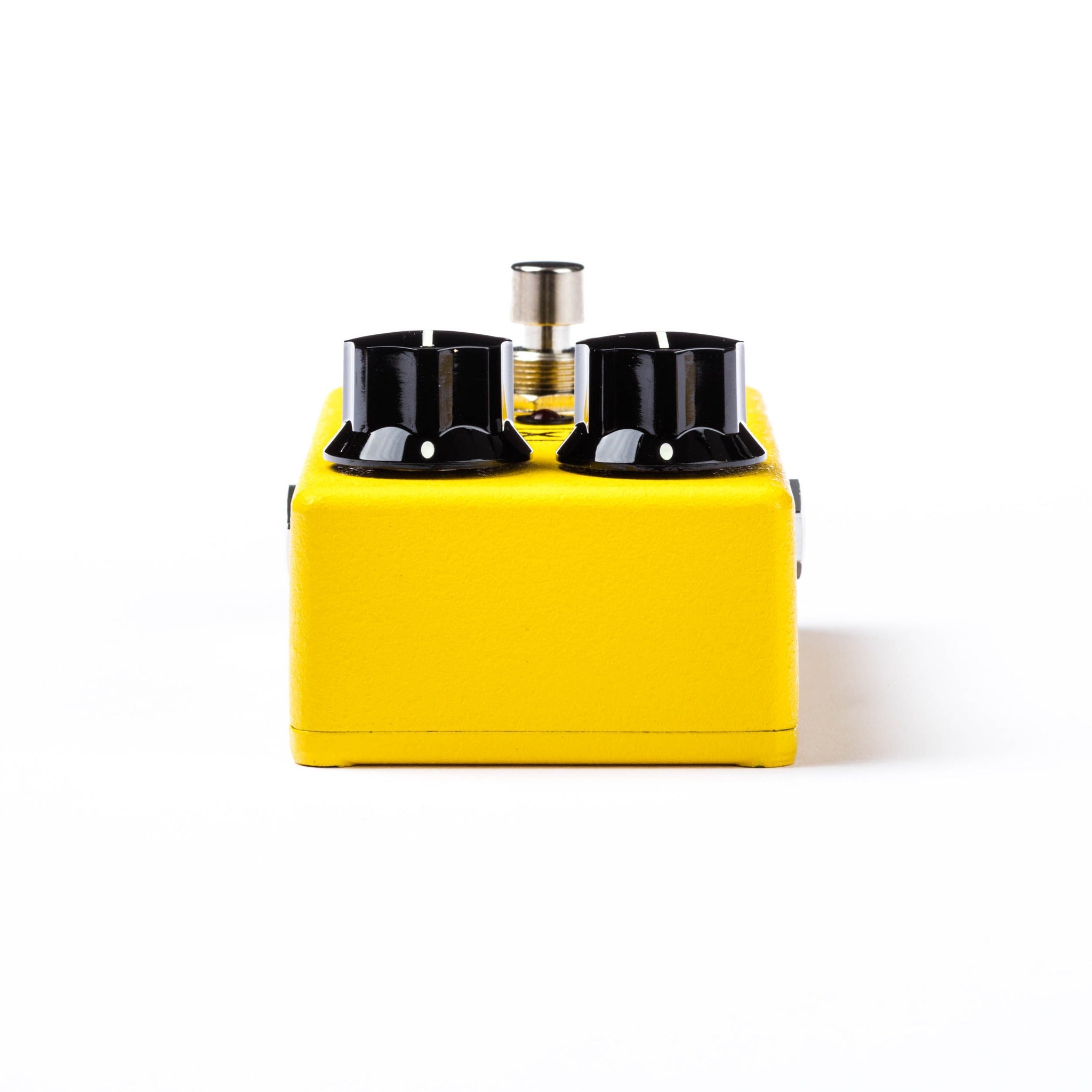

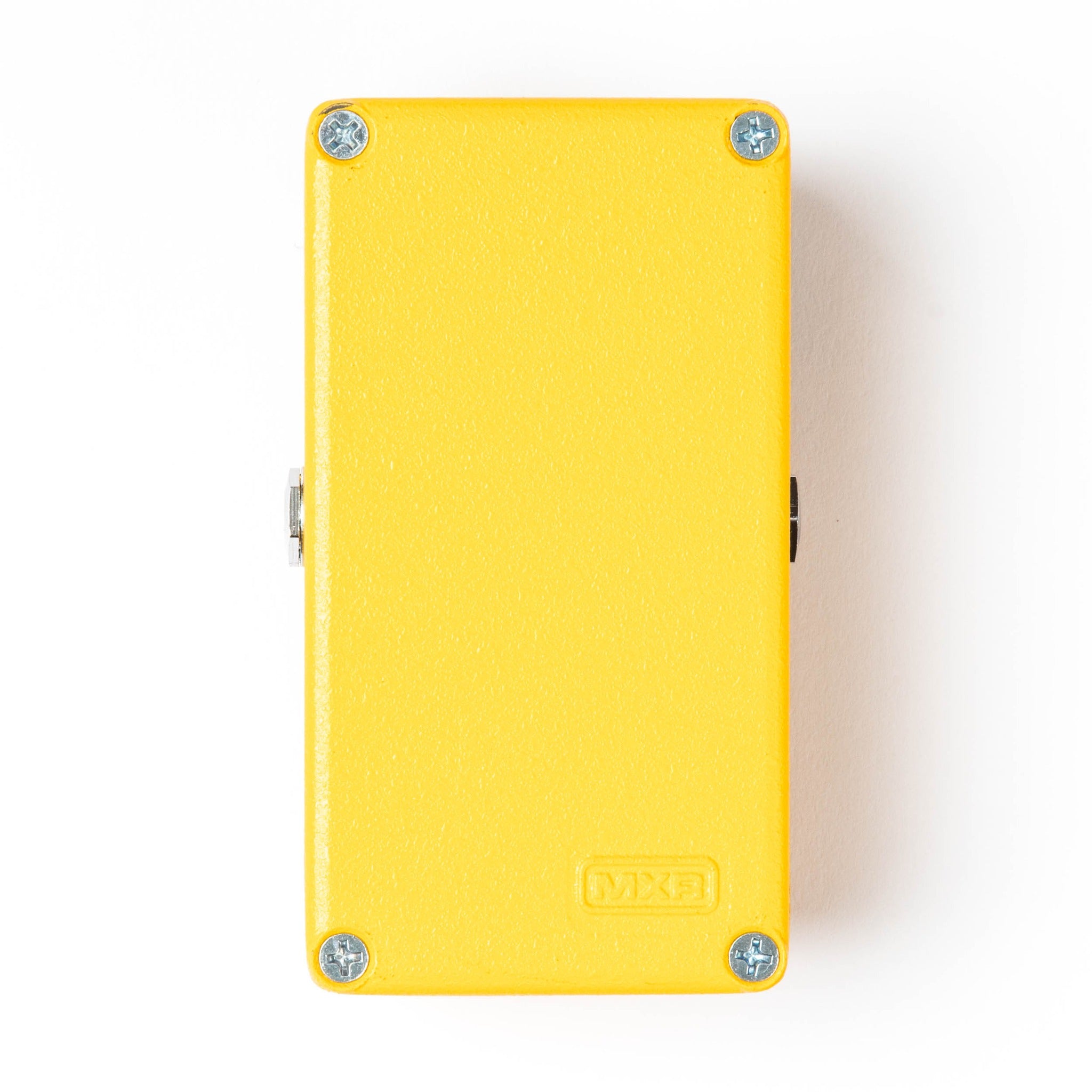

MXR M104 Distortion+ Pedal

The MXR M104 Distortion+ is the pedal that put MXR on the map — an analog, germanium-clipped overdrive/distortion circuit prized for tone that stays musical from a subtle blues crunch all the way to thick, saturated '80s hard rock distortion. Its simple two-knob layout keeps tone-shaping fast and intuitive, while true hardwire bypass means your signal stays untouched when the effect is off.

Features

• Organic, germanium-powered clipping for non-brittle overdrive and distortion
• Smooth range from subtle blues breakup to fuzz-like saturation
• Two-knob simplicity — dial in tone fast, no menus or presets
• True hardwire bypass footswitch preserves your tone when the pedal is off
• Compact, rugged MXR chassis built for gig and pedalboard use

Controls

• Output — sets the overall volume of the effect
• Distortion — sets the amount of distortion
• Footswitch — toggles effect on/bypass; red LED indicates active

Specifications

• Input impedance: 1 MΩ
• Output impedance: 25 kΩ (output control at mid position)
• Distortion gain: 10 dB to 45 dB at 1 kHz
• Bypass: hardwire
• Current draw: 2.5 mA
• Power supply: 9V DC

Powered by a single 9-volt battery (install via the bottom plate) or a 9V DC adapter such as the Dunlop ECB003, DC Brick™, Iso-Brick™, or Mini Iso-Brick™ power supplies (power supply not included).

El Cajon Guitars & Music is an authorized MXR dealer.
