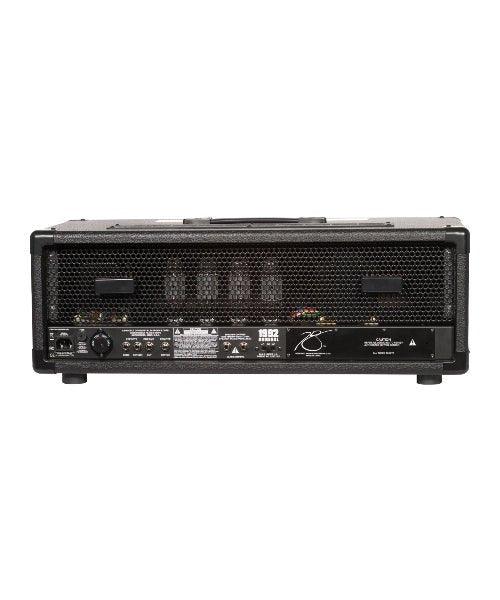

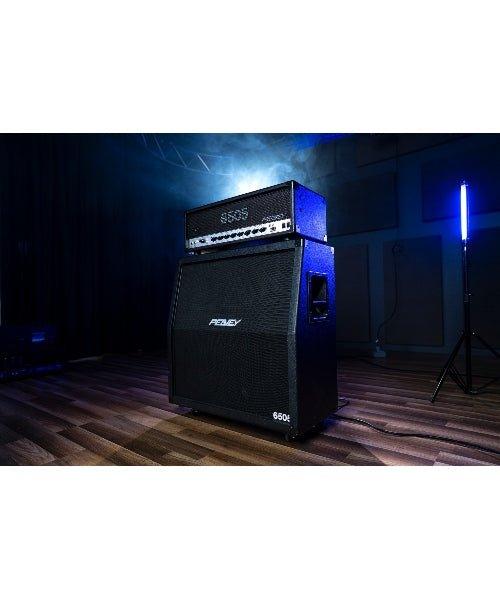

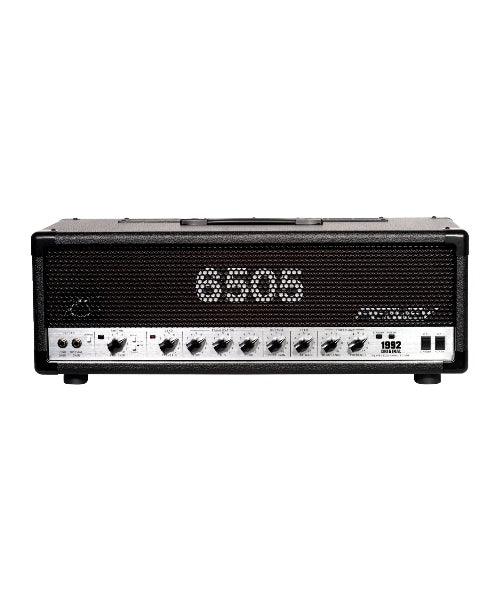

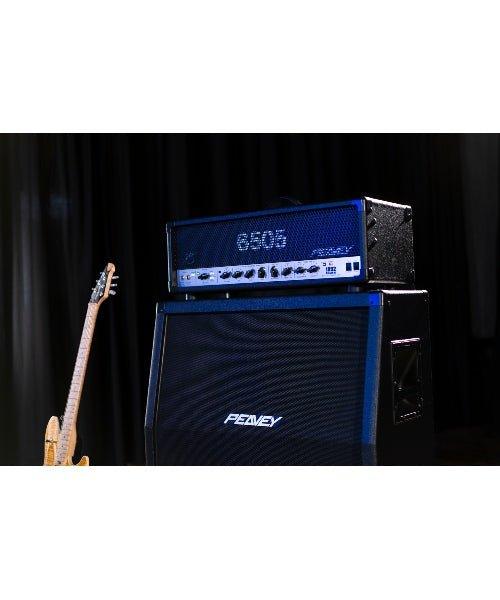

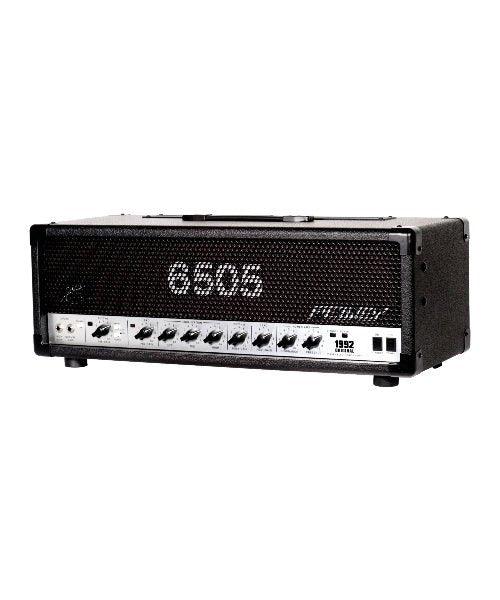

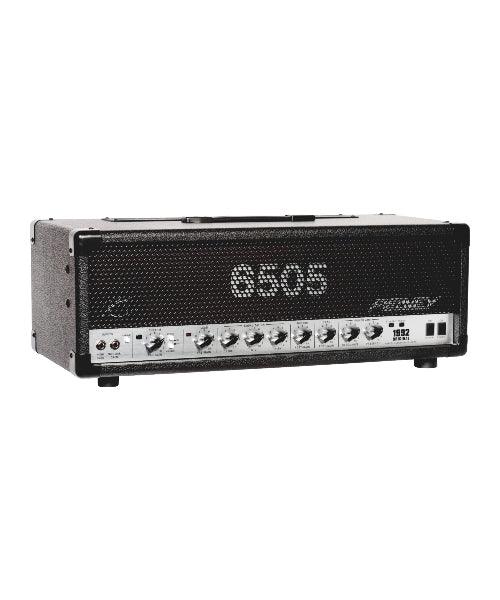

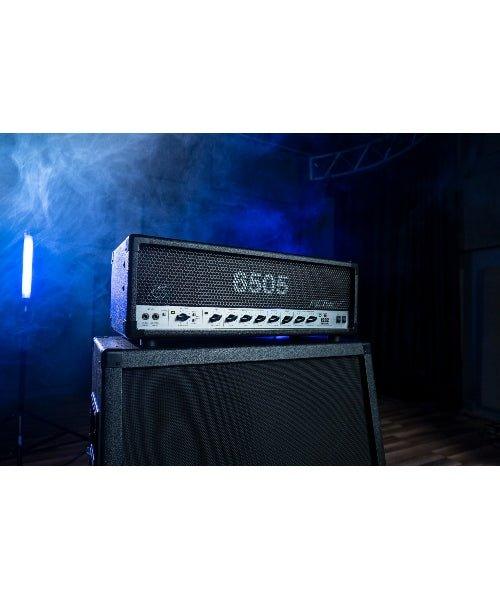

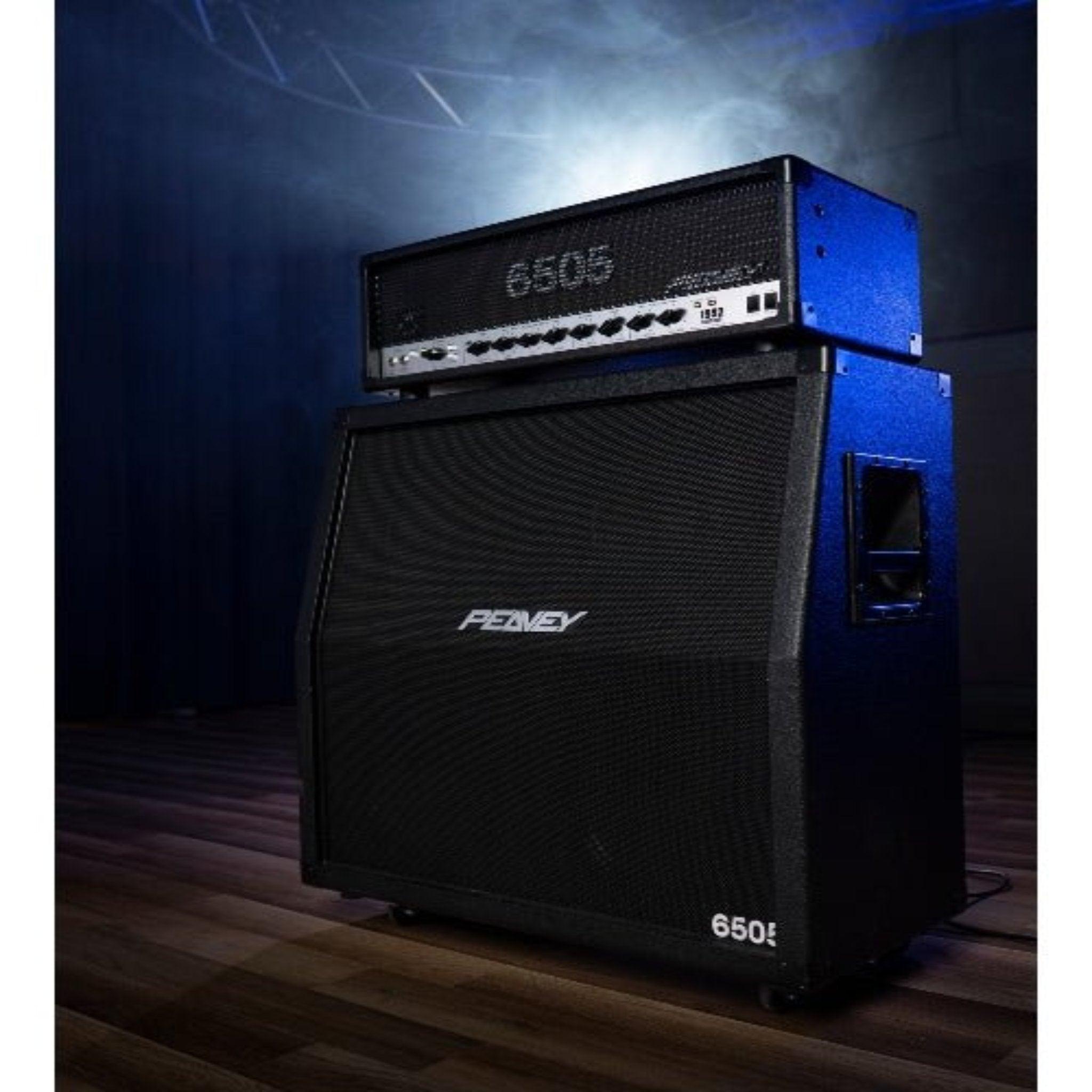

Peavey 6505 1992 Original 120W 2-Channel Guitar Amplifier Head

The amp that built modern metal. The Peavey 6505 — born in 1992 as the 5150, developed with Edward Van Halen — is the reference high-gain tube head. This 1992 Original is Peavey's 30th-anniversary re-creation of that first-year amp: the same aggressive voicing, the same saturated lead channel, and the same tight, percussive attack heard on decades of records and stages.

120 watts of 6L6GC power, a five-tube 12AX7 preamp, and a custom-wound output transformer. The Rhythm channel runs from clean to crunch with dedicated Bright and Crunch switches; the Lead channel is pure saturation with its own Pre- and Post-Gain. Channel switching and the effects loop are both footswitchable.

Key features

• 120 watts RMS, all-tube
• 4 × 6L6GC power tubes, 5 × 12AX7 preamp tubes
• Two footswitchable channels: Rhythm and Lead
• Independent Pre-Gain and Post-Gain on each channel
• Shared 3-band EQ (Low / Mid / High) with Presence and Resonance
• Rhythm-channel Bright and Crunch voicing switches
• Footswitchable series effects loop
• Preamp out
• Custom-built output transformer
• Switchable 16 / 8 / 4-ohm speaker output
• 30th-anniversary re-creation of the original 1992 circuit and cosmetics

Specifications

• Power: 120 W RMS
• Power tubes: 4 × 6L6GC
• Preamp tubes: 5 × 12AX7
• Channels: 2 (Rhythm, Lead), footswitchable
• EQ: 3-band shared, plus Presence and Resonance
• Effects loop: series, footswitchable
• Speaker outputs: 16 / 8 / 4 ohm, switchable
• Additional outputs: preamp out
