Special Order Only. Not discountable below listed low sales price. Processing times vary. All Sales Final
Best in class audio performance
2000 Watt Class-D amplifier module
Intrinsic Correctionâ?¢ tuning and loudspeaker management
DMTâ?¢ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
Refined, professional appearance looks great in any application
Rugged ABS enclosure for long life and lasting durability

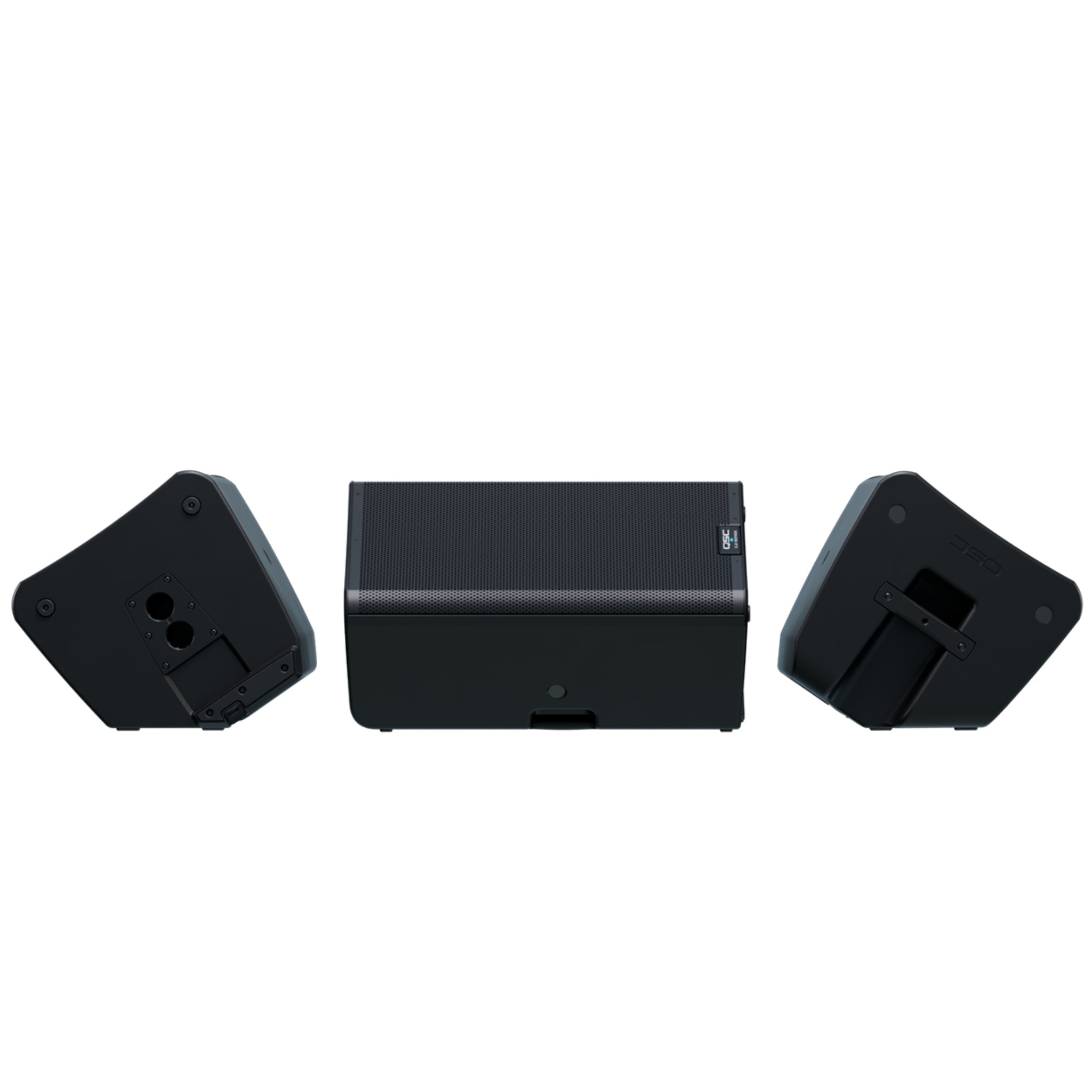

Deployment in either main PA or floor monitor position
Factory Presets and savable/recallable Scenes for commonly-used application
Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
Dual pole cup mounts (standard and 7.5 degree down-tilt)
M10 fittings for flown applications
Optional security panel prevents unauthorized tampering of controls
Complete EASE and CAD information available online
6-Year Warranty (with product registration)
Specifications

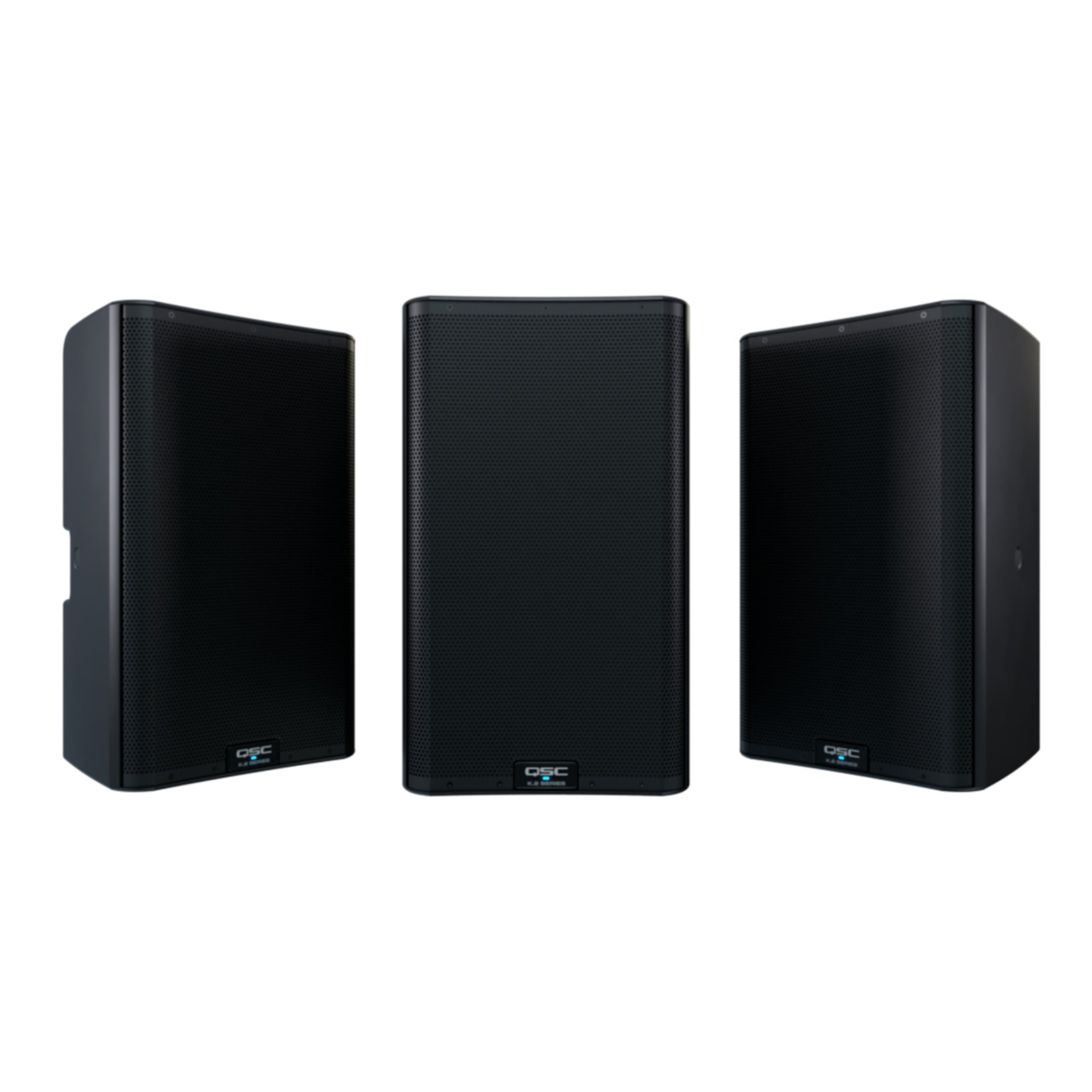

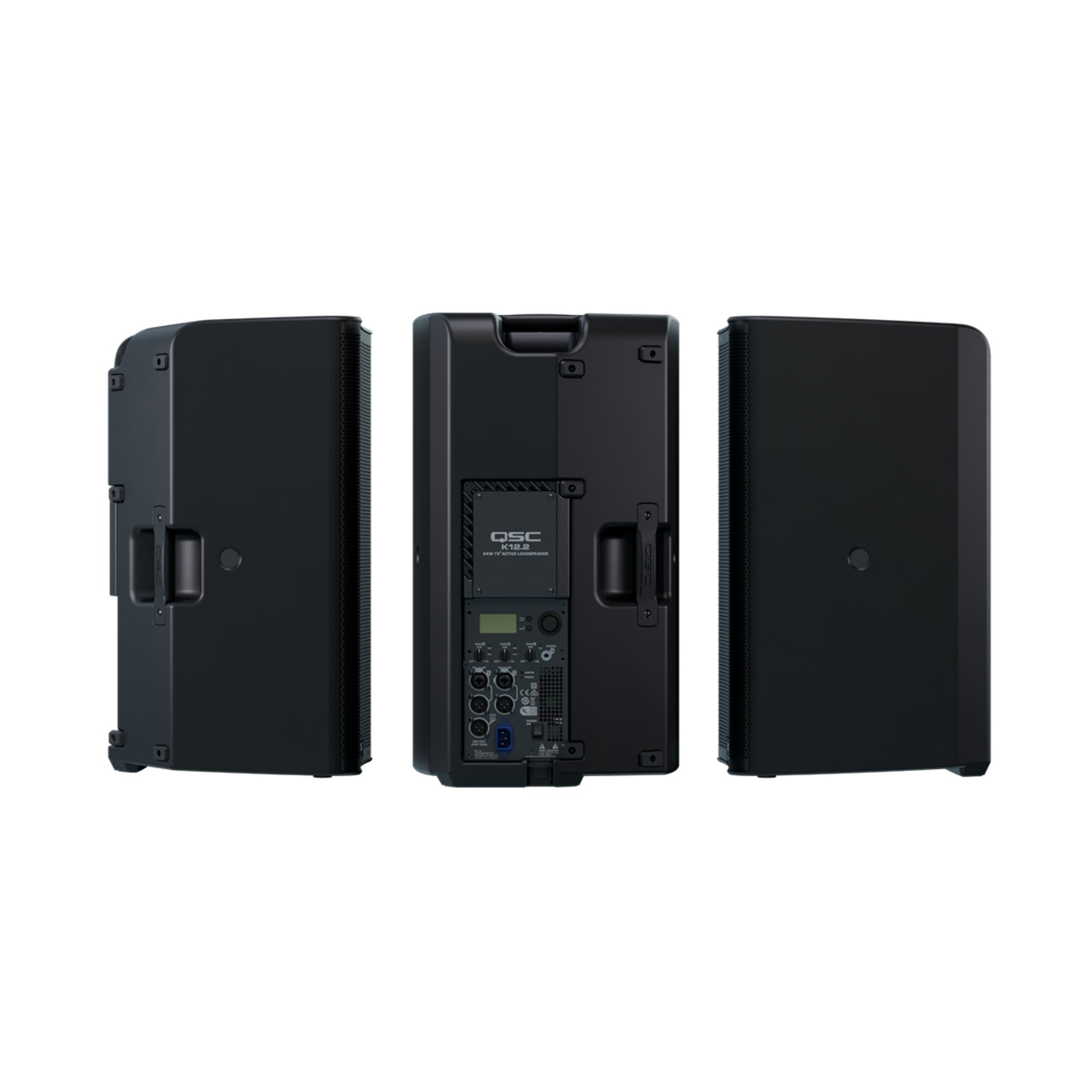

Model K12.2
Configuration Multi-purpose, 2-way active loudspeaker
LF Transducer 305 mm (12-inch), cone
HF Transducer 35.6 mm (1.4-inch) titanium diaphragm compression driver
Frequency Response (-6 dB) 50 Hz - 20 kHz
Frequency Range (-10 dB) 45 Hz - 20 kHz
Nominal Coverage Angle 75° Axisymetric
Maximum Rated SPL1
Amplifier
Cooling 132 dB @ 1 M, peak 126 dB @ 1 M, continuous
Class D
Peak: 1800 W (LF), 225 W (HF)
Low-noise, variable speed fan
Controls Power
3 × Level
Rotary encoder (push)
2 × selection buttons
Indicators Monochrome LCD Display 1.75-inch x 1-inch (45 mm x 25.4 mm)
2 × Power LED (front and rear)
3 × Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED

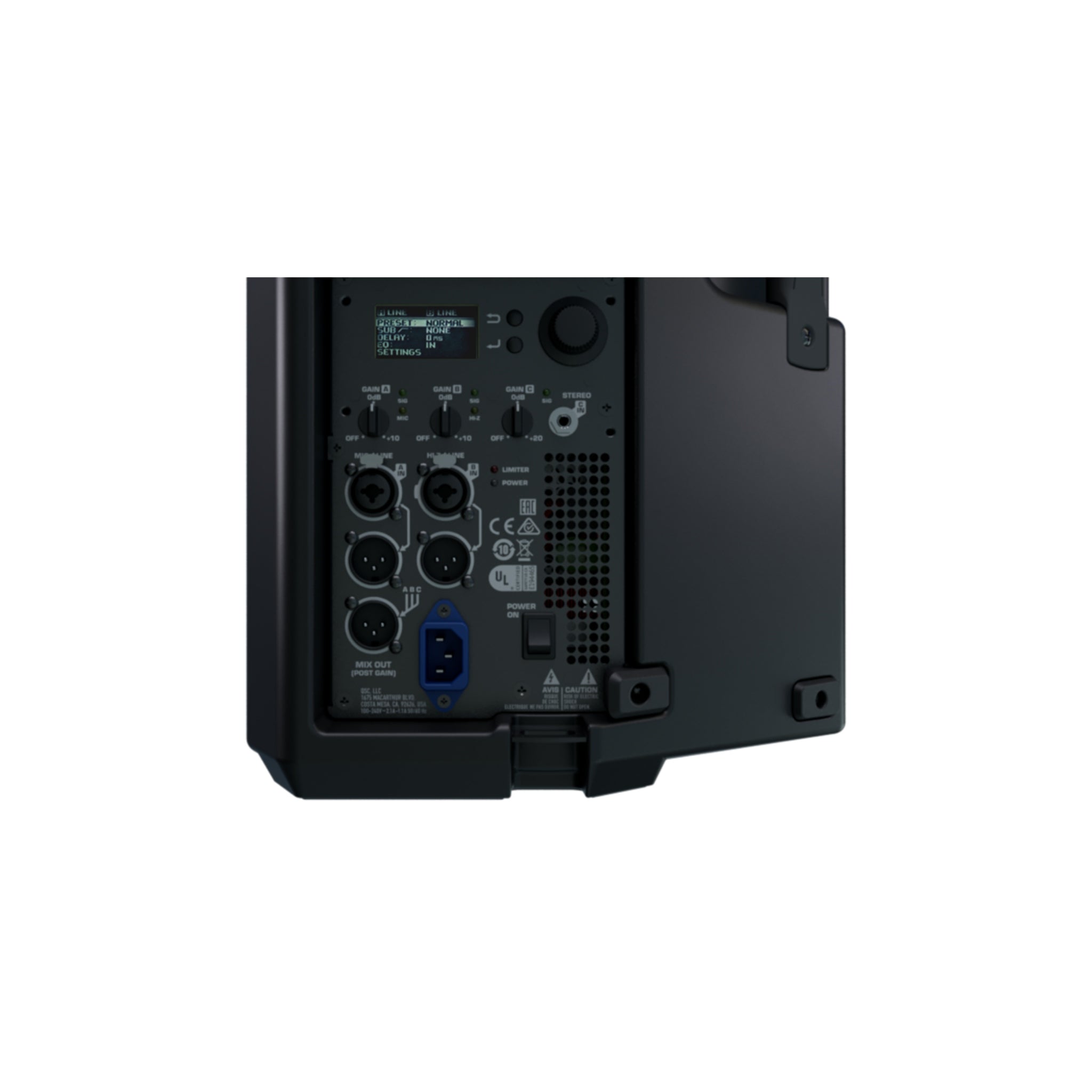

Connectors 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
1 × 3.5 mm TRS (Stereo Input)
2 × XLR/M (Loop-thru Output)
1 × XLR/M (Mix Output)
1 × locking IEC power connector
AC Power Input Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power2 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby 0.2 A at any voltage
Enclosure Details
Enclosure Impact Resistant ABS
Attachment Points 2 × M10 threaded inserts plus Pull-Back
Color Black (RAL 9011)
Grille 18 Gauge powered coated steel, internal cloth lining
Speaker Dimensions (HxWxD) 602 × 356 × 350 mm
23.7 × 14 × 13.8 in
Carton Dimensions (HxWxD) 645 × 470 × 464 mm
25.4 × 18.5 × 18.3 in
Net Weight 17.7 kg / 39 lb
Shipping Weight 21.7 kg / 47.8 lb
Regulatory CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories K12 Tote, K12 Outdoor Cover
M10 Kit-C, K.2-LOC LockOut Cover
K12.2 Yoke
